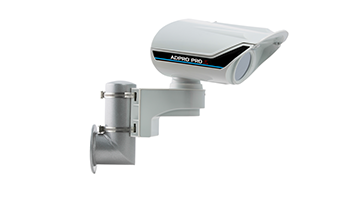

XTRALIS PRO E-100H PIR sensor



PIR sensor curtain for outdoor installation as a perimeter guard with a range of up to 150m, detection zone - length up to 150m and width 3.3m, angle 1.4 °, tracking zone from -1m to + 8m, 360PROtect monitoring of the nearby area , mounting height from 2.5 to 4m, SIWA filter, 5 freely programmable outputs via semiconductor relay 60VDC, 75mA max, 3D tamper with compass, integrated remote service interface for detector setup or monitoring, RS-485, minimum false positives thanks to DSP technology and adaptive detection circuit, built-in heating, operating temperature from -40 ° C to + 60 ° C, IP65, included stand with cable space, dimensions 358x188x290mm, power supply 10.5-30VDC, 18mA @ 12VDC, 12mA @ 24VDC , 24VAC / 30mA, 0.5W heating consumption.



High-performance long-range curtain outdoor PIR-PID, with integrated wall and pole mount cable management bracket. 360PROtect (TM) near surrounding area surveillance and 3D-tamper protection as standard. Integrated Remote-Service interface for a sophisticated detector setup or detector monitoring. Built-in heating device. 5 free programmable solid-state-relais outputs. Minimum nuisance alarms due to the latest DSP-technology and adaptive circuitry of detection.



Technical Specifications: Nominal detection length: 150 m / ~500 ft; Nominal detection width: 3.3 m / ~11 ft; Creep zone monitoring: from -1 m up to +8 m; Aperture angle: 1.4°



IP-Rate IP 65



Weight (incl. cable managed bracket) approx. 1.65 kg
