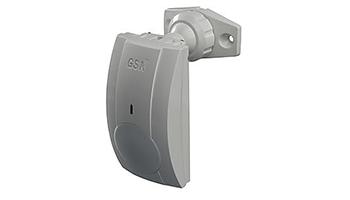

Patrol 903 QUAD PASSIVE INFRARED DETECTOR FOR EXTREMELY HARSH ENVIRONMENTS WITH QUAD ELEMENT PYROSEN

22.90 €
Συμπεριλαμβάνεται Φ.Π.Α. 20%
χωρίς τα έξοδα αποστολής

Κωδικός: 31020

Βάρος: 0.075 kg
Σε απόθεμα

Τεχνικά Στοιχεία Βασικά Στοιχεία Αξιολόγηση

Patrol 903 QUAD PASSIVE INFRARED DETECTOR FOR EXTREMELY HARSH ENVIRONMENTS WITH QUAD ELEMENT PYROSENSOR

Professional passive infrared detector with QUAD element pyrosensor provides the most efficient reliable and stable operation in premises with extremely harsh environments.

PATROL- 903 QUAD forms various segments of detection zones and enables exact focusing of IR energy from any detected area.

PATROL- 903 QUAD highly protected from electromagnetic (EMI) and radio frequency (RFI) interference.

PATROL- 903 QUAD applies the latest and most effective method of bipolar detection.

PATROL- 903 QUAD provides the most reliable and stable operation in premises with extremely harsh environments, where the use of other detectors is not reliable.

Features

Quad pyroelectric sensor
High-tech design
High RFI & EMI immunity
Bipolar detection technology
Bipolar pulses counter
PIR sensivity adjustment
High light immunity
Hermetically sealed pyroelectric sensor
Low operating temperature
Automatic temperature compensation

Specifications

Input voltage 8.5-16VDC
Current consumption in standby mode 9.7mA
Current consumption in alarm mode 10.5mА
Warm up period 60sec
Detection range 15.6m x 125º
Detection speed range 0.3 – 3m/sec
Relay output NC; 60V; 100mA; 16Ω
Tamper output NC; 10Ω
Alarm period 3sec
Reset time 5 ± 1sec
Pulse counter 1,2,3,4
Installation height 2.0 – 2.5m
Light immunity without sunshield filter no less than 6500 Lux
Light immunity with sunshield filter more than 30 000 Lux
Operating temperature range – 30ºC +60ºC
Storage temperature range – 50ºC +80ºC
RFI immunity 30V/м at a frequency range 30MHz-1GH
EMI immunity 50 000V
Dimension 54mm x 33mm x 99mm
Weight 75gr

Τιμή Μονάδος: 22.90 €
Κατασκευαστής:
Βάρος: 0.075 kg
