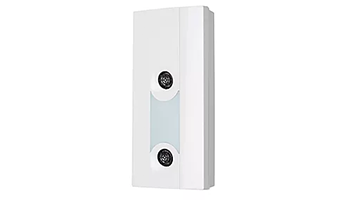

Patrol USM

MOTION AND DESTRUCTION DETECTOR

PATROL-USM detects motion and destruction in protected area.

PATROL-USM combines ultrasonic and microwave progressive technologies.

PATROL-USM provides unprecedented protection of objects, where standard PIR and combined PIR & microwave detectors are not reliable.

PATROL-USM operates in low (–30ºC) and high (+70ºC) environment temperatures.

PATROL-USM has dual technology, which provides stable detection and excludes false alarms.

Features

•     Unprecedented premises protection
•     Stable operation in a wide-ranging temperature environment
•     Innovative detection method of ultrasonic and microwave signals
•     Digital spectral analysis of ultrasonic and MW frequencies
•     Pulse counter (1-7)
•     Separate adjustment for both ultrasonic and MW channel sensitivity
•     High RFI/EMI protection
•     Tamper protection
•     Automatic gain control (adaptation to environmental changes)

Specifications

Input voltage:     9 - 16Vdc
Current consumption in standby mode:     44mA
Current consumption in alarm mode:     95mA
Warm-up period:     30±5sec
Alarm period:     3sec
Ultrasonic channel operating frequency:     40kHz
Microwave channel operating frequency:     24GHz
Pulse counter:     1-7
Installation height:     2-2.5m
Detection range:     7m
Maximum protected volume:     200m³
Detection angle:     170°
Relay output:     NC; 60V; 120mA; 16Ω
Tamper output:     NC; 10Ω
Operating temperature range:     –30ºC to +70ºC
Storage temperature range:     –50ºC to +85ºC
RFI immunity:     30V/m at a frequency range 10MHz – 2GHz
EMI immunity:     50000V
Dimensions:     105mm x 50mm x 22mm
Weight:     80g
