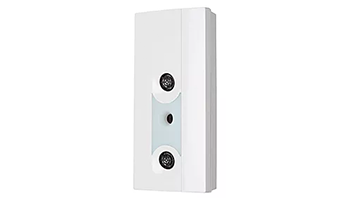

Patrol USR

ACOUSTIC MULTILAYER GLASS BREAK DETECTOR
​
PATROL-USR is designed for professional protection of multilayered and other glasses.

PATROL-USR combines sonic and ultrasonic progressive technology.

PATROL-USR detects breakage of all known multi-layered glass types that hold together when shattered.

PATROL-USR provides reliable protection of multilayer glass and glass blocks where conventional glass break detectors are not reliable.

PATROL-USR operates in low (–30ºC) and high (+70ºC) environment temperatures.


PATROL-USR with dual technology provides stable detection and excludes false alarms.


Features

•     Innovative method detection of acoustic signals
•     Complete protection of all known glass types types
•     Insulated glazing and glass blocks
•     Digital spectral analysis of sound and ultrasonic frequencies
•     Highly selective sensitivity of high frequency sound channel
•     Two operating modes
•     Separate adjustment for both ultrasonic and high-frequency channel sensitivity
•     High RFI/EMI protection
•     Automatic gain control (adaptation to environmental changes)

Specifications

Input voltage:     9 - 16Vdc
Current consumption in standby mode:     37.3mA
Current consumption in alarm mode:     42.2mA
Warm-up period:     2sec
Alarm period:     3sec
Ultrasonic channel operating frequency:     40kHz
Installation height:     2-2.5m
Detection range:     7m
Maximum protected volume:     200m³
Detection angle:     170°
Relay output:     NC; 60V; 120mA; 16Ω
Tamper output:     NC; 10Ω
Operating temperature range:     –30ºC to +70ºC
Storage temperature range:     –50ºC to +85ºC
RFI immunity:     30V/m at a frequency range 10MHz – 2GHz
EMI immunity:     50000V
Dimensions:     105mm x 50mm x 22mm
Weight:     80g
