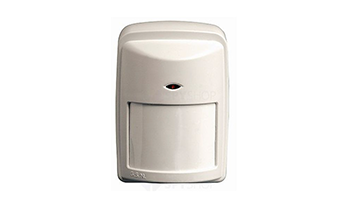

Patrol 201 PET PASSIVE INFRARED DETECTOR WITH PET IMMUNITY UP TO 20KG AND 1M HEIGHT

0.00 €
Συμπεριλαμβάνεται Φ.Π.Α. 20%
χωρίς τα έξοδα αποστολής

Κωδικός: 31015

Βάρος: 0.094 kg
Μη Διαθέσιμο

Τεχνικά Στοιχεία Βασικά Στοιχεία Αξιολόγηση

Patrol 201 PET PASSIVE INFRARED DETECTOR WITH PET IMMUNITY UP TO 20KG AND 1M HEIGHT

PATROL- 201PET is a passive infrared detector, which provides PET immunity up to 20kg.

PATROL- 201PET incorporates an effective detection system, maximum protection from false alarms and easy and fine PIR sensitivity adjustment to the pet's weight.

Advantages

Ignores pets of up to 20kg and 1m height.

Easy and fine PIR sensitivity adjustment to the pet's weight.

An automatic counter selects and counts incoming pulses in accordance

with the strength of incoming signals to the detector.

An original Fresnel lens protects the detector from false alarms upon

exposure to sunlight or headlights.

A hermetical sealing of the pyroelectric sensor protects the detector from

draughts and small insects, thus eliminating one of the main causes of false alarms.

Coverage area - 15m x 90°.

Full protection from radio frequency interference (RFI). There is no alarm

against a 10 watt transmitter within 1m range at a frequency range

of 10MHz to 1000MHz.

The detector relay is an optoelectronic relay with an unlimited number of

operation cycles.

The detector remains operational at temperatures as low as -30°C.

PATROL-201PET IS A RELIABLE DETECTOR SERVING IN ACCORDANCE WITH THE NEEDS OF BOTH END USER AND INSTALLER.

Specifications

Detection speed range: 0.3 - 3.0m/sec;
Power input: 8.5 - 16VDC;
Current consumption:
In stand-by mode: 11.2mA;
In alarm mode with LED on: 9.7mA;
In alarm mode with LED off: 6.8mA;
Pulse mode: automatic /2;
Alarm period: 3sec;
Coverage range: 15meters;
Relay output: 60V; 120mA; 16Ω;
Warm up period: 40sec;
Reset time: 5±1sec;
Light immunity: no less than 10000Lux;
Opening protection: TAMPER SWITCH;
Operating temperature range: -30ºC +50ºC;
Storage temperature range: -40ºC +80ºC;
RFI immunity: 30V/m at a frequency range 10MHz - 1000MHz;
EMI immunity: 50000V;
Dimensions: 93mm x 66mm x 46mm;
Weight: 94gr.
