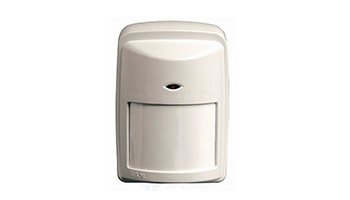

Patrol 401 PET PASSIVE INFRARED DETECTOR, WHICH PROVIDES PET IMMUNITY UP TO 35KG AND 1M HEIGHT



PATROL-401PET is a digital passive infrared detector, immune to pets up to 35kg.



A combination of a unique, cutting-edge technology of bipolar detection with QUAD pyroelectric sensor, makes the PATROL-401 PET the most reliable detector, flawlessly immune to pets up to 35kg and capable of providing reliable detection in harsh environments.



Features



PATROL- 401PET is immune to pets of up to 35kg and 1 m height.



PATROL- 401PET, equipped with QUAD sensor, forms numerous segments

of detection zones and enables exact focusing of IR energy from any detected area.



Algorithm



The operating principle of the PATROL- 401PET algorithm is based on a bipolar pulse counter and is under microprocessor control to flawlessly detect human motion in a secured area, completely eliminating false alarms and ensuring the stable operation of the detector in harsh environments.

PATROL-401PET has full protection from radio frequency interference (RFI). There is no alarm against a 10 watt transmitter within 1m range

at a frequency of 10MHz to1000MHz.

Hermetical sealing of the pyroelectric sensor protects the detector from draughts and small insects, thus eliminating one of the main causes of false alarms.

The detector remains operational at temperatures as low as -30°C.



PATROL-401 PET ENSURES STABLE OPERATION AND RELIABLE SECURITY IN HARSH INDUSTRIAL ENVIRONMENTS.



Specifications
