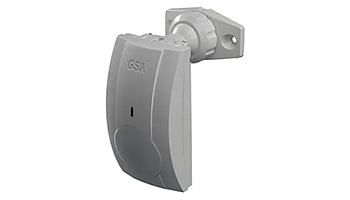

Patrol 703 PASSIVE INFRARED DETECTOR


PATROL-703 incorporates an efficient detection system, maximum protection from false alarms.

PATROL-703 is an ideal infrared human motion detector, evenly covering every point of the detection area.

Advantages

•     Automatic selection and counting of incoming pulses in accordance with the strength of input signals.
•     A sensitivity regulator to reliably stabilize the detector's operation.
•     An optoelectronic switch relay with an unlimited number of operation cycles.
•     Coverage area: 18m x 90°.
•     Guaranteed RFI protection.
•     Hermetical sealing of the pyroelectric sensor protects the detector from draughts and small insects, thus eliminating one of the main causes of false alarms.
•     The detector remains operational at temperatures as low as -30°C.

​

PATROL-703 ENABLES THE BEST PROTECTION AT THE LOWEST COST.

Specifications

Detection speed range:     0.3 - 3.0m/sec;
Power input:     8.5 - 16VDC;
Current consumption:
In stand-by mode:     11.5mA;
In alarm mode with LED on:     10mA;
In alarm mode with LED off:     7mA;
Pulse mode:     automatic/2;
Alarm period:     3sec;
Coverage range:     18meters;
Relay output:     60V; 120mA; 16Ω;
Warm up period:     40sec;
Reset time:     5±1sec;
Light immunity:     no less than 10000Lux;
Opening protection:     TAMPER SWITCH;
Operating temperature range:     -30ºC +50ºC;
Storage temperature range:     -40ºC +80ºC;
RFI immunity:     30V/m at a frequency range 10MHz - 1000MHz;
EMI immunity:     50000V;
Dimensions:     93mm x 66mm x 46mm;
Weight:     94gr.
