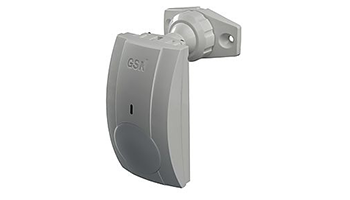

Patrol 203 PET PASSIVE INFRARED DETECTOR WITH PET IMMUNITY UP TO 20KG
Passive infrared detector with dual element pyrosensor provides the most efficient security of residential and industrial premises.
PATROL- 203PET ignores pets up to 20kg and 1m height.
PATROL- 203PET provides the most efficient security of residential and industrial premises.
PATROL- 203PET eliminates dead zones and ensures the best detection of infrared energy radiating from moving intruder in protected area.
Features
Immune to pets up to 20kg
High-tech design
High RFI & EMI immunity
PIR sensivity adjustment
Animal weight regulator 10/20kg
High light immunity
Hermetically sealed pyroelectronic sensor
Low operating temperature
Automatic temperature compensation
Specifications
-
Input voltage 8.5-16VDC
-
Current consumption in standby mode 12mA
-
Current consumption in alarm mode 16.5mА
-
Warm up period 60sec
-
Detection range 15.6m x 120º
-
Detection speed range 0.3 – 3m/sec
-
Relay output NC; 60V; 100mA; 16Ω
-
Tamper output NC; 10Ω
-
Alarm period 3sec
-
Reset time 5 ± 1sec
-
PET mode 10/20kg
-
Installation height 2.0 – 2.5m
-
Light immunity without sunshield filter no less than 6500 Lux
-
Light immunity with sunshield filter more than 30 000 Lux
-
Operating temperature range – 30ºC +60ºC
-
Storage temperature range – 50ºC +80ºC
-
RFI immunity 30V/м at a frequency range 30MHz-1GH
-
EMI immunity 50 000V
-
Dimension 54mm x 33mm x 99mm
-
Weight 75gr
