Texecom External detector, External TD White AFQ-0002

84.90 €
Συμπεριλαμβάνεται Φ.Π.Α. 20%
χωρίς τα έξοδα αποστολής

Κωδικός: 24598

Βάρος: 0.100 kg
Σε απόθεμα

Τεχνικά Στοιχεία Βασικά Στοιχεία Αξιολόγηση

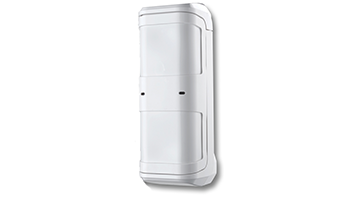

Texecom External detector, External TD White AFQ-0002

External digital PIR detector with mirror optics, two dual digital PIR sensors operating in circuit "I" to minimize false alarms. Immunity for animals up to 40 cm. Range: 12 x 12 m / 90 °, sensitivity adjustment, digital temperature compensation, LED indication, IP65, day / night mode and immunity to strong light, mounting height: 1.0-1.4 m (1.2 m nominal) Dimensions: 250 x 86.5 x 87 mm, power supply 9 ÷ 16V, 28mA. Operating temperature -35 ° to + 55 ° C. EN50131-1 Grade2; EN50131-2-4 Grade2, black

Texecom AFQ 0001 Premier External TD Outdoor Motion Sensor White

Texecom’s philosophy of innovative design is perfectly captured within the Prestige Series. Interchangeable electronic modules, high precision mirrored optics and discreet miniature styling guarantee world-class detector performance.

The Prestige External TD is a purpose built outdoor sensor for security applications. Utilising two non-overlapping PIR sensors with superior mirrored optics, the Prestige External TD is designed to perform in harsh outdoor environments.

Features :

12m volumetric range, adjustable to 8, 5 & 2 metres
No disassembly required for installation
90° viewing angle - rotatable through 180°
Environmentally sealed IP65 enclosure
Digital temperature compensation for hot climates
Auxiliary input for wiring multiple detectors
High white light immunity
Day/night model

Specifications :

Current Consumption: 28mA
Detection Method: Dual, non-overlapping, digital PIR
Alarm Output: NC/NO selectable relay. Rated 50V DC, 100mA, 18Ω
Tamper Detection: Wall and case. Sealed non-mechanical switch.
Tamper Output: NC relay. Rated 50V
Operating Temperature: -35˚C (-31˚F) to +55˚C (+131˚C) DC, 100mA, 18Ω
Dimensions: 250mm x 86.5mm x 87mm
Packed Weight: 550g (20 oz) approx
Mounting Height: 1.0 - 1.4m, 1.2m nominal
Supply Voltage: 9-16 VDC

Τιμή Μονάδος: 84.90 €
Κατασκευαστής:
Βάρος: 0.100 kg
