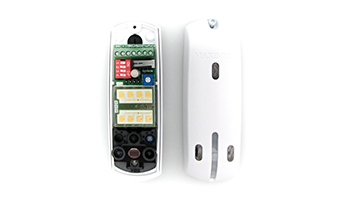

Texecom Combined detector, PIR / MW CURTAIN-PM

66.90 €
Συμπεριλαμβάνεται Φ.Π.Α. 20%
χωρίς τα έξοδα αποστολής

Κωδικός: 24596

Βάρος: 0.100 kg
Σε απόθεμα

Τεχνικά Στοιχεία Βασικά Στοιχεία Αξιολόγηση

Texecom Combined detector, PIR / MW CURTAIN-PM

Volume combined PIR / MW detector for outdoor installation type "Curtain" and Anti-masking. Digital signal processing. PIR element with sensitivity adjustment. 24.125GHz microwave detector with sensitivity adjustment. Detection scheme AND / OR. Range 10m, 3⁰C. Temperature stabilized. Radio-protected RFI 20V / M, DC to 1GHz. Operating temperature -40⁰С ÷ 70⁰С. Power supply DC 9 ÷ 14V / 30mA. Set with stand.

Creates a super narrow protective screen of 3°.
Combines PIR & Microwave technology.
Masking protected (Anti-masking) by active infrared beams.
Selectable PIR detection sensitivity.
Selectable Microwave detection sensitivity.
Selectable detection technology combination: AND/OR.
Memory latched input.
Waterproof and all-weather resistant.
Extremely reliable & highly immune to false alarms.
Auto temperature compensation.
Automatic adaptation to background noise.
A/D signal analyzer
Powerful Microprocessor controlled.
SPC - Smart Processing Controller.
Two "Optomos" relays for lifetime operation.
Power Supply - 9 to 14V DC.
Current drain - Standby: 20mA (Max.);
Operation: 30 mA (Max.).
Alarm contacts. - (N.C.) 15V DC / 20 mA, Max.
Masking contacts - (N.C.) 15V DC / 20 mA, Max.
Tamper switch contacts - (N.C.) 24V DC / 100 mA, Max.
Warm-up time - 1 Minute
Detection speed - 0.1 ~ 5 m/sec.
Alarm time - 2 Sec.
Response time to masking - 90 Seconds (Max.)
Masking relay activation time - All time of masking (at least 2 Sec.)
RFI immunity - Greater than 20V/M, DC to 1GHz
Motion detection coverage - 10 meter, 3°
Operating temperature - (-)37°C ~ 70°C (-4°F ~ 158°F).
Humidity withstand - 95%
Microwave operating Frequency - 24.125 GHz (Optional 2.4 GHz.)
Dimensions - HxWxD 104 x 35 x 35 mm.

Τιμή Μονάδος: 66.90 €
Κατασκευαστής:
Βάρος: 0.100 kg
