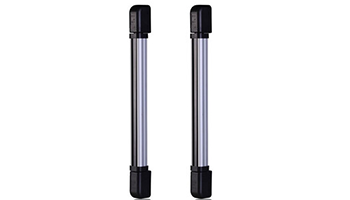

Set of IR barriers - 8 beams; 100M; FOG, ABI100-1408



Digital infrared barriers with EIGHT photovoltaic cells, pulse mode in "I" circuit for two adjacent beams, DSP with Fuzzy algorithm for signal analysis. Operating distance 100m (outdoor) / 300m (indoor). Adjustable operating frequency, 2x frequency channels. Optical or wired synchronization, possibility to work with or without synchronizing wire. Target adjustment: 180º. Built-in tamper on the lid. Built-in audible alarm. Outputs: 1x Relay alarm output NO / NC- (AC / DC30V / 500mA); 1x NC tamper output (DC24V / 500mA). Power supply: DC11 ~ 18V / 90mA. Aluminum housing with dimensions: (480/1080/1400) x35x35mm and degree of protection IP65, suitable for outdoor installation. Operating temp: -30º ~ 70ºC. Transmitter-receiver set.



Weight 2 Kgr
