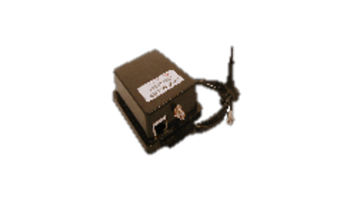

Sectron Electronics IPM 10R IPM 10R - IP/GPRS Communication module



IPM 10R - IP/GPRS Communication module for data transmission to two monitoring centers (main and backup) via Ethernet 10Mbps or GPRS transmission medium, using UDP protocol. When one transmission medium fails, signals are automatically sent through the other. The module can use only Ethernet or only GSM/GPRS communication.

- Two-way encrypted communication (AES-128).

- Automatically configure network settings.

- Remote programming.

- Receive events via serial port.

- Status check at intervals (from 1 to 255 sec.) - Firmware update option

Communication channels:

UDP over Ethernet 10 Mbps, Static or dynamic IP address

UDP via GPRS, Static or dynamic IP address. Report format: Contact ID

- 8 digital inputs.

- 2 analog inputs with a range of 0.....2V

- 1 communication input with DTMF coding

- 1 communication input Ethernet 10Mbps, RJ-45.

- 2 Digital outputs, load to ZA

- 2 Serial Ports:

Serial 1: for connection between IPM10R and Paradox control panel

Serial 2: for setting (programming) the working parameters

- Fully compatible with all alarm systems using Contact ID protocol. Reception and processing of the incoming events from the monitoring software available on the market /POWER LINK, LARS, SAMSON, etc./
