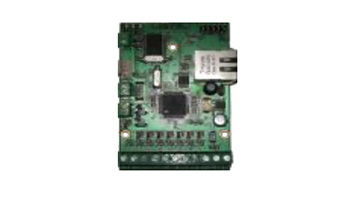

Sectron Electronics IPM 10 L IPM 10 LAN Communication module



IPM 10 LAN Communication module for data transmission to two monitoring centers (main and backup) over Ethernet using UDP protocol:

- Two-way encrypted communication (AES-128).

- Automatically configure network settings.

- Remote programming.

- Receive events via serial port.

- Status check at intervals (from 1 to 255 sec.)

- Possibility to update the firmware

Communication channels:

UDP over Ethernet 10 Mbps, Static or dynamic IP address Report format: Contact ID

-8 digital inputs.

-2 analog inputs with a range of 0.....2V

-1 communication input with DTMF coding

-1 communication input Ethernet 10Mbps, RJ-45.

- 2 Digital outputs, load to ZA

- 2 Serial Ports:

Serial 1: for connection between IPM10L and Paradox control panel

Serial 2: for setting (programming) the working parameters

- Fully compatible with all alarm systems using Contact ID protocol. Reception and processing of the incoming events from the monitoring software available on the market /POWER LINK, LARS, SAMSON, etc./
