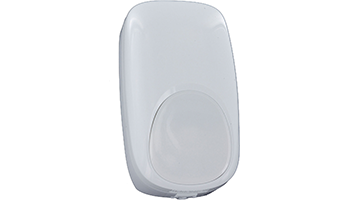

Honeywell DT8016АF4 Dual Tec Motion Sensor With Anti-Mask



Combined digital PIR & MW detector with 16x22m range and Antimasking. Microwave detector operating frequency 10.525GHz, adjustable sensitivity / range. Mirror optics with 60 zones. Look-Down to secure the area under the detector. Immunity to white light with an intensity of up to 10 000Lux. Improved digital Dual Slope temperature compensation, Radio protection: 15V / m (80 ~ 2700MHz), Diode indication (On / Off), with Flash test mode, Self-Test. Tamper on the cover and wall. Adjustable mounting height: 2.1 ~ 2.7m. Possibility for corner and ceiling mounting (with stand), Plug-in connector for easy installation. Built-in vibration detector. Built-in balance resistors: 1K / 2.2K / 4.7K / 5.6K. Power supply: DC9 ~ 15V / 14mA. Dimensions: 116x70x43mm. Operating temperature: -10 ° ~ 50 ° C. EN50131-2-4 Grade 3 Class II, NF & A2P three shields, GOST-R, PD6662: 2010
