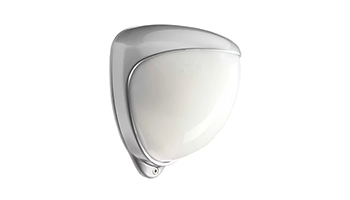

GJD GJD110 External detector with quadruple PIR element



External detector with quadruple PIR element; range: programmable up to 30 meters; detection angle from 10° -70°; maximum coverage 30m X 30m; adjustment: 180 ° horizontal rotation + 90 ° vertical tilt; optimal installation height 3 meters, maximum installation height 6 meters; power supply 9-15 VDC; operating temperature: -20 ° C to + 55 ° C; Dimensions 145 x 120 x 115mm; IP65
