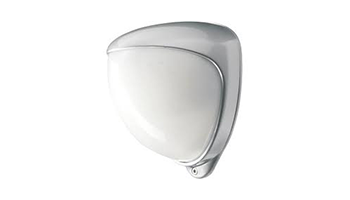

External detector, D-TECT 1 GJD115



External PIR detector with double PIR element, detection angle of 10˚ ÷ 70˚, 28 zones for each PIR element. Maximum range 30x30 meters, mounting height up to 6 m. Immunity for animals at a height of 1.5 m, immunity to white light. Degree of protection IP55. Operating temperature -20 ° ~ 55 ° C, power supply: DC9 ÷ 15V.



Product detail



The D-TECT 1 is a highly cost-effective quad PIR external movement detector, which can be used to control cameras, connect to alarm panels and other alarm warning devices.



It is equipped with a pan and tilt dual infrared scanner with two volt-free relay outputs and programmable beam ranges of 10, 20 and 30 metres.



No other movement detectors are more versatile or offer such a wide range of features to enhance the detection of threats and significantly reduce the incidence of false alarms.



The D-TECT range sets new standards of performance and control.
