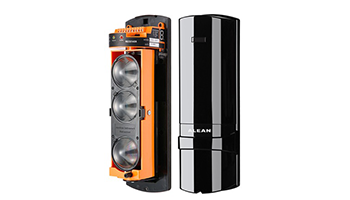

Digital infrared barriers TBE-150



Digital infrared barrier with TRIPLE photoelectric element, pulse mode in "I" circuit. Operating distance 150m (outdoor) / 450m (indoor). DSP control with built-in algorithms to optimize operation in adverse conditions, fog, snow, rain. Built-in two-character LED display with signal level indication. Adjustable operating frequency, 4x frequency channels. Target adjustment: H ± 90º / V ± 10º. Adjustable break time: 50 ~ 700ms. Beam width at 100m range: 2.4m. Built-in tamper on the lid. Outputs: 1x Relay alarm output NO / NC- (AC / DC30V / 1A); 1x NC tamper output (DC24V / 500mA); 1x Heater control output up to 200mA, switches below 5 ° C, switches off above 7 ° C. Power supply: AC / DC 12 ~ 24V / 90mA. Operating temp: -25º ~ 55ºC. PVC housing suitable for outdoor installation with degree of protection IP65, dimensions: 90.5x290.8x92mm. Wall or pylon mounting (set with metal plates for pylon Ф35-50). Transmitter-receiver set. Compatible heater: AN-201. Compatible stands: ALF-50L.
