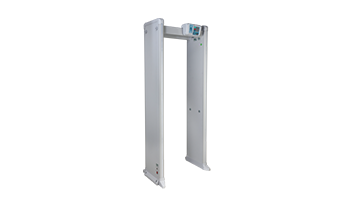

DAHUA ISC-D218 Walk-through Metal Detector
> Two sets of high-brightness red-green LEDs, super bright double-row area indicator lights and independent interactive 18-zone function with 12 detectors
> Count the numbers of passes and alarms respectively
> 72 application scenarios selectable
> Zone sensitivity adjustable from 0 to 399
> Security degree adjustable from 0 to 99
> 50 working frequencies selectable
> Alarm sound volume adjustable from 0 to 99; support mute mode
> 100 alarm tones selectable
> Multiple start-stop modes for IR
> 100 alarm duration levels selectable
> Support using remote control for configuration
> 2 pairs of sensors, and multiple start-stop modes
> High-strength Fire Retardant High-pressure Laminate (HPL) material
> Easy to install and use with modular design
General
Overall Exterior Size
2210 mm × 928 mm × 572 mm (87" × 36.5“ × 22.5")
Passageway Interior Size
2057 mm × 714 mm × 421 mm (81" × 28.1" × 16.6")
Packing Size
2409 mm × 868 mm × 303.5 mm (94.8" × 34.2" × 11.9")
Net Weight
45 kg (99.2 lb)
Gross Weight
62 kg (136.7 lb)
Operating Voltage
90V–240V AC 50/60Hz
Max Power Consumption
9 W
Standby Power Consumption
8 W
Operating Temperature
–20°C to +65°C (–4°F to +149°F)
Operating Humidity
0%–95%
Storage Temperature
–20°C to +70°C (–4°F to +158°F)
Storage Humidity
0%–90% RH
Working Frequency
1–50 frequency ranges (5000–8999Hz)
With Remote Control
Yes
Certification
