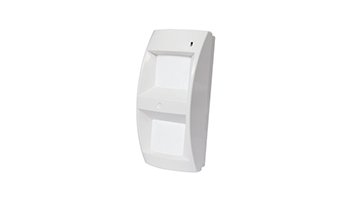

Combined PIR detector for outdoor installation, Soutdoor / L



Combined PIR detector for outdoor installation. Digital signal processing. Two double PIR elements with sensitivity adjustment. Detection scheme I. Range 12m @ 90⁰. Temperature stabilized. Radio-protected RFI / EMI 30V / m (80 / 1000MHz). Pet immunity - against the detection of small animals. Adjustable range 3 ~ 15m. Two tampers: cover, wall. Configuration via built-in DIP switches. Operating temperature -30⁰С ~ 70⁰С. Degree of protection IP65. Power supply DC 9 ÷ 15V / 52mA. Dimensions: 85x185x66mm. Certificates: EN 50131-2-4: 2008, EN 50131-2-4 Grade 2, EN 50131-2-4 Class 4. Set of three lenses: volumetric, horizontal curtain, vertical curtain. Compatible stand SN3.
