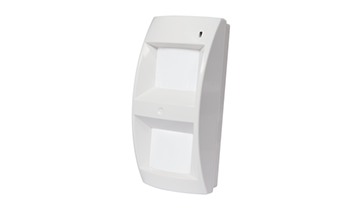

Combined PIR & MW detector for outdoor installation, Soutdoor / T



Combined PIR & MW detector for outdoor installation with IR Anti-masking. Digital signal processing. Two double PIR elements with sensitivity adjustment. 10.525GHz microwave detector with sensitivity adjustment. Detection scheme AND / OR / Auto. Range 15m @ 90⁰. Temperature stabilized. Radio-protected RFI / EMI 30V / m (80 / 1000MHz). Pet immunity - against the detection of small animals. Memory of events. 4x Programmable outputs. Adjustable range 3 ~ 15m. Two tampers: cover, wall. Configuration via built-in DIP switches or PC software. Operating temperature -30⁰С ~ 70⁰С. Degree of protection IP65. Power supply DC 9 ÷ 15V / 52mA. Dimensions: 85x185x66mm. Certificates: EN 50131-2-4: 2008, EN 50131-2-4 Grade 2, EN 50131-2-4 Class 4. Set of three lenses: volumetric, horizontal curtain, vertical curtain. Compatible stand SN3.
