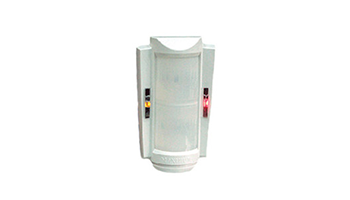

Combined detector, PIR/MW GUARD-AV



Combined PIR & MW detector for outdoor installation. Digital signal processing. Two PIR elements with sensitivity adjustment. 10.525GHz microwave detector with sensitivity adjustment. Detection scheme AND / OR. Range 12m, 110⁰. Temperature stabilized, Immunity against white light. Pet immunity - against the detection of small animals. Radio-protected RFI / EMI 20V / M, DC to 1GHz. Operating temperature -37⁰С ÷ 70⁰С. Power supply DC 10 ÷ 16V / 40mA.



GUARD-AV is actually the same product as GUARD, but without the Anti-masking and Shock & Vibration Sensor.

4-dimensional, all-in-one motion detector.

Two PIR sensors.

Microwave sensor.

Waterproof and all-weather resistant.

Pet immune.

Lighting immune.

Microprocessor controlled.

Selectable PIR detection sensitivity.

Selectable Microwave detection sensitivity.

Selectable detection technology combination (AND/OR).

Memory latched input.

Wide-angle (110°) field-of-view.

Auto temperature compensation.

High level of RFI/EMI immunity.

Vertical adjustment.

Multi-directional Mounting BRACKET (Option).

Introduction



GUARD-AV is actually the same product as GUARD, but without the Shock & Vibration Sensor.



GUARD-AV is an advanced and reliable outdoor / indoor motion detector, for military,  industrial, commercial and residential security.

GUARD-AV has a massive aesthetic design and combines the technologies of Passive infrared, Active infrared and Microwave as well.

GUARD-AV ignores pet, it is also waterproof and all-weather resistant.

GUARD-AV combines variety of detection techniques that make it able to detect in very difficult environmental conditions and where high security is required while maintaining unprecedented immunity to false alarms.



Excellent 4-dimensional detection:

The two synchronized PIR sensors produce a three-dimensional thermal imaging of the protected area.

Combining the fourth dimension as a microwave scanning contributes to an amazing detection capacity and in the same time it also increases the reliability and immunity to false alarms.

Using this technique allows high sensitivity level adjustment in both detection technologies without the need of pulse count.
