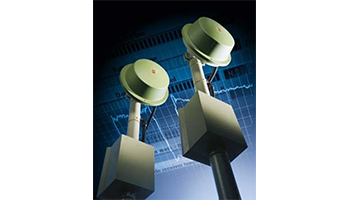

CIAS ERMO 482/120 Outdoor microwave barriers with a range of up to 200 meters



Microwave barrier 120m.(TX+RX).The ERMO482/80, 120, 200 models use a 200mm parabolic antenna that creates a narrow field, more useful when available space is limited but distances are long.



Outdoor microwave barriers with a range of up to 200 meters

The ERMO482 microwave barrier consists of a receiver and a transmitter, which are installed opposite each other, creating a protective zone, the dimensions of which change depending on the type of antenna, the distance between the heads and the sensitivity settings. The ERMO482 is available with ranges of 50, 80, 120 and 200 meters.

The ERMO482/50 model has a 100 mm parabolic antenna, which has the ability to create very large fields of detection at a short range. The ERMO482/80, 120, 200 models use a 200mm parabolic antenna that creates narrower fields - a more convenient option for locations with limited space and longer distances. The ERMO482 is a detector specially designed for outdoor use and has the ability to be set up in all types of atmospheric conditions. It has sensitivity and integrated controls for target discrimination. It also has a system of 4 preset modular codes (channels) which system protects the interface at crossing points.

ERMO482 uses new generation microwave components that are extremely stable thanks to technologies such as "strip line", "gas fet", "dro", together with the parabolic antennas and reflector. Everything in the ERMO482 is designed and manufactured in CIAS's own laboratory.



• Range: 50, 80, 120, 200 m

• Frequency: x-band, certified in many countries and compliant with European, US and Canadian standards

• Power supply: 19vac/13.8vdc/24vdc (13.8vdc battery charger)

• Consumption: tx 100 ma – rx 100 ma (13.8 vdc)

• Temperature: -35°c/+65°c

• Channels: 4 on-off

• Modulation: Continuous

• Regulation: Continuous

• Dimensions/weight: Maximum ø – 310 mm, depth 260 mm

• Arrangement: Electronic, via STC95

• Outputs: Relays for alarm, tamper

• Special applications: Available model for application in explosive areas
