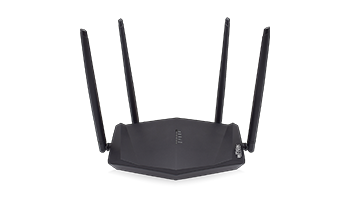

Wi-Tek WI-R2-CCTV Wi-Fi & PoE Router 300Mbps



The WI-R2 cost effective unit can be configured in any 1 of 3 PoE modes to suit various apllications - view image for PoE configurations.



Through its included PSU - PASSIVE PoE can be provided to 3 out of 4 of its ports and is able to power a Wi-Tek CPE513P P2P beam!



This and its modest specs make it perfect for extending home networks to an external office, shed or Summer house to give a Wi-Fi signal + power to a camera when power outlets and budgets are limited!. Specs include:



2.4GHz up to 300Mbps - 4x 5dBi Antennas

3x LAN 10/100 Ports + 1x WAN (up to 3 PoE)

Mains powered 48V DC PSU (included)



Wireless router; 802.11b / g / n support; built-in 4 pcs. 5dBi antennas; 2.4Ghz wireless Wi-Fi connection, transfer speed up to 300Mbps; 4 x 10 / 100Mbps Fast Ethernet ports; PoE WAN port support; selectable modes Passive PoE input / output for WAN / LAN 1 / LAN 2 ports; PoE pass-trough support; PVC housing for outdoor installation; web interface for setting and monitoring the status (connection speed, connected devices, traffic consumption, etc.); power supply: 9-48Vdc / 2A
