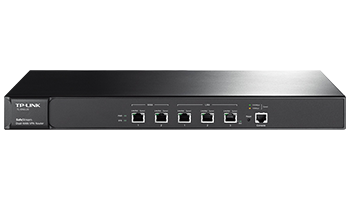

TP-LINK TL-ER6120 SafeStream Gigabit Dual-WAN VPN Router

Overview

    2 Gigabit WAN ports, 2 Gigabit LAN ports, 1 Gigabit LAN/DMZ port and a console port
    Supports multiple VPN protocols including IPsec/PPTP/L2TP, which helps users establish their VPN more flexibly
    Supports up to 100 IPsec VPN tunnels with a hardware-based VPN engine
    Abundant security features including ARP Inspection, DoS Defense, URL/Keyword Domain Filter and Access Control
    Deploys One-Click restriction of IM/P2P applications to manage staff online behavior
    Professional 4kV lightning protection keeps your investments as safe as possible

Features

    Up to 100 IPsec VPN Tunnels, 130Mbps IPsec VPN Throughput
    IPsec, PPTP, L2TP, L2TP over IPsec
    IPsec NAT Traversal (NAT-T)
    DES, 3DES, AES128, AES192, AES256 Encryption
    MD5, SHA1 Authentication
    Manual, IKE Key Management Mode
    LAN-to-LAN, Client-to-LAN IPsec VPN
    PPTP/L2TP VPN Server/Client
    Hardware DMZ port
    One-to-One NAT
    FTP/H.323/SIP/IPsec/PPTP ALG
    IM/P2P Application Blocking
    URL/Keywords Filtering
    Web Content Filtering (Java, ActiveX, Cookies)
    ARP Inspection
    DoS/DDoS Defense
    Intelligent Load Balance
    Policy Routing
    Link Backup (Timing, Failover)
    IP-based Bandwidth Control
    Guarantee & Limited Bandwidth
    IP-based Session Limit
    Port VLAN, Port Mirror
    Static Routing, RIP v1/v2
    PPPoE Server
    E-Bulletin

Specifications

HARDWARE FEATURES

Standards and Protocols     IEEE 802.3, IEEE802.3u, IEEE802.3ab
TCP/IP, DHCP, ICMP, NAT, PPPoE, SNTP, HTTP, DNS, IPsec, PPTP, L2TP
Interface     2 Gigabit WAN ports
2 Gigabit LAN ports
1 Gigabit LAN/DMZ port
1 Console Port (RJ-45 On RS232)
Network Media     10BASE-T: UTP category 3, 4, 5 cable (Max 100m)
EIA/TIA-568 100Ω STP (Max 100m)
100BASE-TX: UTP category 5, 5e cable (Max 100m)
EIA/TIA-568 100Ω STP (Max 100m)
1000BASE-T: UTP category 5, 5e, 6 cable (Max 100m)
Button     Reset Button
Power Supply     Internal Universal Power Supply
AC100-240V~ 50/60Hz Input
Dimensions (W X D X H)     17.3x8.7x1.7 in.(440x220x44 mm)
19-inch Standard Rack-Mount Width, 1U Height
Flash     8MB
DRAM     DDRII 128MB
LED     PWR, SYS, Link/Act, Speed, DMZ
PERFORMANCE
Concurrent Session     60000
NAT Throughput     350Mbps
IPsec VPN Throughput (3DES)     130Mbps
BASIC FUNCTIONS
DHCP     DHCP Server/Client
DHCP Reservation
Switch Setting     Port Mirror
Rate Control
Port Config
Port VLAN
WAN Connection Type     Dynamic IP, Static IP, PPPoE, PPTP, L2TP, Dual Access, BigPond
MAC Clone     Modify WAN/LAN/DMZ MAC Address
ADVANCED FUNCTIONS
Load Balance     Intelligent Load Balance
Policy Routing
Protocol Binding
Link Backup (Timing, Failover)
Online Detection
NAT     One-to-One NAT
Multi-nets NAT
Virtual Server, DMZ Host, Port Triggering, UPnP
FTP/H.323/SIP/IPsec/PPTP ALG
Routing     Static Routing
Dynamic Routing (RIP v1/v2)
System Mode     NAT, Non-NAT, Classical Routing
Traffic Control     IP-based Bandwidth Control
Guarantee & Limited Bandwidth
Time-scheduled Policy
IP-based Session Limit
VPN
L2TP VPN     32 L2TP VPN Tunnels
L2TP VPN Server/Client
L2TP over IPsec
VPN Pass-through     IPsec (ESP), PPTP, L2TP
IPsec VPN     100 IPsec VPN Tunnels
LAN-to-LAN, Client-to-LAN
Main, Aggressive Negotiation Mode
DES, 3DES, AES128, AES192, AES256 Encryption Algorithm
MD5, SHA1 Authentication Algorithm
Manual, IKE Key Management Mode
IPsec NAT Traversal (NAT-T)
Dead Peer Detection (DPD)
Perfect Forward Secrecy (PFS)
PPTP VPN     32 PPTP VPN Tunnels
PPTP VPN Server/Client
PPTP with MPPE Encryption
SECURITY
ARP Inspection     Sending GARP Packets
ARP Scanning by WAN/LAN
IP-MAC Binding
Attack Defense     TCP/UDP/ICMP Flood Defense
Block TCP Scan (Stealth FIN/Xmas/Null)
Block Ping from WAN
Filtering     MAC Filtering
URL/Keywords Filtering
Web Content Filtering (Java, ActiveX, Cookies)
DMZ Port     1 Hardware DMZ Port
Application Control     IM, P2P, Web IM, Web SNS, Web Media, Protocol, Proxy Blocking
MANAGEMENT
Service     PPPoE Server
E-Bulletin
Dynamic DNS (Dyndns, No-IP, Peanuthull, Comexe)
Maintenance     Web/CLI/Telnet Management Interface
Remote Management
Export & Import Configuration
NTP Synchronize
Syslog Support
OTHERS
Certification     CE, FCC, RoHS
Package Contents     TL-ER6120
Resource CD
Power Cord
Ground Cable
Rack-mount Kit
Installation Guide
System Requirements     Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7, MAC® OS, NetWare®, UNIX® or Linux

Environment

Operating Temperature: 0℃~40℃ (32℉~104℉)
Storage Temperature: -40℃~70℃ (-40℉~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
