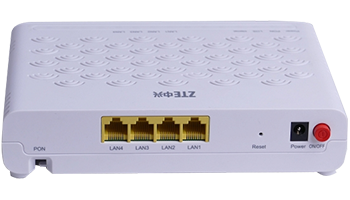

ZXHN F600 is a GPON Optical Network Terminal designed for FTTH scenario. It provides
subscribers rich, colorful, individualized, convenient and comfortable services including
video (IPTV) and high speed internet access. It has a small, smart appearance and green,
energy-saving advantage.

Full GE Ports for Speeds 10x Faster than Fast Ethernet
Gigabit Ethernet ports are available on the LAN (home networking) side. With Gigabit
Ethernet ports, users can watch online videos, listen to podcasts, download large files and
move massive amounts of data within their home network or out to the Internet at the same
time.
Quality of Service (QoS)
The QoS features of the F600 enable service providers to design QoS policies and prioritize
mission-critical services such as IPTV and VoIP freely based on their individual service
plans. So, service providers could deliver real multi-play applications to users and
increase network efficiency.
Easy Operation and Maintenance
The F600 supports batch-update, fault diagnosis, interface loop back checking and loop
routes checking remotely by OMCI. It supports flexible authentication modes for zero-touch
service provisioning. In this way, ONT is plug and play, and easy to be changed quickly. The
operation and maintenance is much easier.
Backup Battery Solution
To provide high reliability access and no different service experience in FTTO/H network,
ZTE full serial ONUs adopt cost-effective, stable and eco-friendly backup battery solution
with LiFePO4 and Ni-HM battery to provide up to 14h backup power.
GPON and XG-PON1 Coexistence
ITU-T G.984.5 has defined the WBF(Wavelength Block Filter) feature to coexist with XG-PON1
ONU within one ODN network and one feed fiber . Now the optical modules installed in ZTE
full serial GPON ONTs have integrated with WBF feature for future-proof evolution.


GPON Interface
Optical port :  1 x GPON interface  (SC/APC)
Transmission Distance: 0 ~ 20km
Transmit rate: 2.488Gbps downstream; 1.244Gbps upstream
User Network Interface
4 x 10/100/1000Base-T
Half/full duplex; Auto MDI/MDIX; Auto negotiation
Optical Module
Wavelength:
 Receiving: 1480~1500 nm
 Transmitting: 1290~1330 nm
Receiving Sensitivity: -28dBm
Transmitting Optical Power: 0.5~5dBm
Physical Performance
Power consumption: <6W
Dimensions: 180mm(W) x 38mm(H) x 127mm(D)
Working temperature: 0oC ~ 40oC
Working humidity: 5% ~ 95%
Weight: about 250g
Power supply: 12 V DC
Mounting mode: Desktop/Wall mounting
Supports hidden and coiled fiber
Backup battery: 3AH/6AH (Optional)
Main Function
Supported service: Internet, IPTV
GPON: 8 T-CONTs, 32 GEM Ports
VLAN: 802.1Q, 802.1P, 802.1ad
MAC address table: 1k
Multicast: IGMP v1/v2 Snooping
Multicast group per user port: 256
QoS: service flow classification based on physical port, Ethernet type; ingress rate limit;
egress shaping
Management: local web management, OMCI
