450Mbps wireless speed and Gigabit Ethernet ports for multiple HD video streaming
    Port USB 2.0 Multi-Function - you can share a local printer, and to share files and multimedia devices with network or remotely via FTP server
    Easy wireless security by pressing the WPS button

HARDWARE FEATURES
Interface 4 ports 10/100 / 1000Mbps LAN
1 port 10/100 / 1000Mbps WAN
1 USB 2.0 port
Button WPS / Reset
Power
Wi-Fi
Antenna 5dBi * 3 detachable omnidirectional antenna (RP-SMA)
External Power Supply 12VDC / 1.5A
Wireless Standards IEEE 802.11n, IEEE 802.11g, IEEE 802.11b
Dimensions (W x D x H) 225 x 141 x 30mm.
WIRELESS FEATURES
Frequency 2.4-2.4835GHz
Signal Rate
11n: Up to 450Mbps (dynamic)
11g: Up to 54Mbps (dynamic)
11b: Up to 11Mbps (dynamic)
Reception Sensitivity 270M: -68dBm @ 10% PER
130M: -68dBm @ 10% PER
108M: -68dBm @ 10% PER
54M: -68dBm @ 10% PER
11M: -85dBm @ 8% PER
6M: -88dBm @ 10% PER
1M: -90dBm @ 8% PER
Transmit Power CE:
<20dBm (2.4GHz)
FCC:
<30dBm
Wireless Functions Enable / Disable Wireless Radio, WDS Bridge, WMM, Statistics
Wireless Security 64/128/152-bit WEP / WPA / WPA2, WPA-PSK / WPA2-PSK
FEATURES SOFTWARE
Quality of Service WMM, Bandwidth Control
WAN Type
Dynamic IP / Static IP / PPPoE /
PPTP (Dual Access) / L2TP (Dual Access) / BigPond
Management
Access control
local Management
remote Management
DHCP Server, Client, DHCP Client List,
Address reservation
Port Forwarding Virtual Server, Port Triggering, UPnP, DMZ
Dynamic DNS DynDns, Comexe, NO-IP
VPN Pass-Through PPTP, L2TP, IPSec (ESP Head)
Access Control
Parental Control, Local Management Control, Host List,
Schedule Access, Rules Management
firewall Security
Filter Address IP DoS / SPI Firewall / address filtering MAC / Filtering Domain /
Binding IP Address and MAC
Supported Protocols IPv4 and IPv6
Guest Network 2.4GHz Guest Network × 1
OTHERS
Certification CE, FCC, RoHS

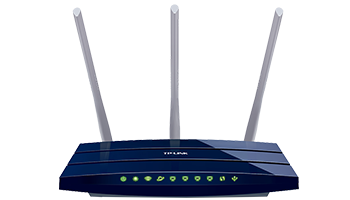

Package Contents TL-WR1043ND
3 Detachable Antennas Dual Band
Power Supply
accompanying CD
Quick Installation Guide
System Requirements Microsoft® Windows® 10 / 8.18 / 7 / Vista / XP / 2000, MAC® OS, NetWare®, UNIX® or Linux.
Environment
Operating Temperature: 0 ℃ ~ 40 ℃
Storage Temperature: -40 ℃ ~ 70 ℃
Operating Humidity: 10% ~ 90%, without condensation
Storage Humidity: 5% ~ 90%, without condensation
