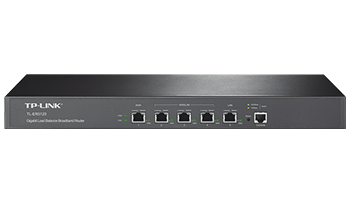

TP-LINK TL-ER5120 v.3 Gigabit Load Balance Broadband Router

Για πληοροφορίες για την τιμή και τη διαθεσιμότητα πρακαλούμε καλέστε
CALL NOW

Κωδικός: 22164

Βάρος: 0.650 kg
Μη Διαθέσιμο

Τεχνικά Στοιχεία Βασικά Στοιχεία Αξιολόγηση

1 fixed gigabit WAN port, 1 fixed gigabit LAN/DMZ port and 3 freely interchangeable gigabit WAN/LAN ports
Abundant security features including ARP Inspection, DoS Defense, URL/Keyword Domain Filter and Access Control
Deploys One-Click restriction of IM/P2P applications to easily manage staff online behavior
Supports PPPoE Server for the better management of internal network
Load Balancing, automatically selects the best route according to the load
Professional 4kV lightning protection keeps your investments as safe as possible


Standards and Protocols	IEEE 802.3, 802.3u, 802.3ab TCP/IP, DHCP, ICMP, NAT, PPPoE, SNTP, HTTP, DNS, IPsec, PPTP, L2TP
Interface	1 Fixed 10/100/1000Mbps WAN Port 3 Free Changeable 10/100/1000Mbps WAN/LAN Ports 1 Fixed 10/100/1000Mbps LAN/DMZ Port 1 Console Port (RJ-45 On RS232)
Network Media	10BASE-T: UTP category 3, 4, 5 cable (Max 100m) EIA/TIA-568 100Ω STP (Max 100m) 100BASE-TX: UTP category 5, 5e cable (Max 100m) EIA/TIA-568 100Ω STP (Max 100m) 1000BASE-T: UTP category 5, 5e, 6 cable (Max 100m)
Button	Reset Button
Power Supply	Internal Universal Power Supply AC100-240V~ 50/60Hz Input
Flash	8MB
DRAM	DDRII 128MB
LED	PWR, SYS, Link/Act, Speed, WAN, DMZ
Dimensions ( W x D x H )	17.3x8.7x1.7 in.(440x220x44 mm) 19-inch Standard Rack-Mount Width, 1U Height

PERFORMANCE
Concurrent Session	120000
NAT Throughput	350Mbps

BASIC FUNCTIONS
WAN Connection Type	Dynamic IP, Static IP, PPPoE, PPTP, L2TP, Dual Access, BigPond
DHCP	DHCP Server/Client DHCP Reservation
MAC Clone	Modify WAN/LAN/DMZ MAC Address
Switch Setting	Port Mirror Rate Control Port Config Port VLAN

ADVANCED FUNCTIONS
Load Balance	Intelligent Load Balance Policy Routing Protocol Binding Link Backup (Timing, Failover) Online Detection
NAT	One-to-One NAT Multi-nets NAT Virtual Server, DMZ Host, Port Triggering, UPnP FTP/H.323/SIP/IPsec/PPTP ALG
Routing	Static Routing Dynamic Routing (RIP v1/v2)
System Mode	NAT, Non-NAT, Classical Routing
Traffic Control	IP-based Bandwidth Control Guarantee & Limited Bandwidth Time-scheduled Policy IP-based Session Limit

SECURITY
DMZ Port	1 Hardware DMZ Port
Application Control	IM, P2P, Web IM, Web SNS, Web Media, Protocol, Proxy Blocking
Attack Defense	TCP/UDP/ICMP Flood Defense Block TCP Scan (Stealth FIN/Xmas/Null) Block Ping from WAN
Filtering	MAC Filtering URL/Keywords Filtering Web Content Filtering (Java, ActiveX, Cookies)
ARP Inspection	Sending GARP Packets ARP Scanning by WAN/LAN IP-MAC Binding

MANAGEMENT
Service	PPPoE Server E-Bulletin Dynamic DNS (Dyndns, No-IP, Peanuthull, Comexe)
Maintenance	Web/CLI/Telnet Management Interface Remote Management Export & Import Configuration NTP Synchronize Syslog Support

OTHERS
Certification	CE, FCC, RoHS
Package Contents	TL-ER5120 Resource CD Power Cord Rack-mount Kit Installation Guide
System Requirements	Microsoft® Windows® 8, 7,Vista™, XP or MAC® OS, NetWare®, UNIX® or Linux
Environment	Operating Temperature: 0℃~40℃ (32℉~104℉) Storage Temperature: -40℃~70℃ (-40℉~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing

Κατασκευαστής: TP-LINK
Βάρος: 0.650 kg
