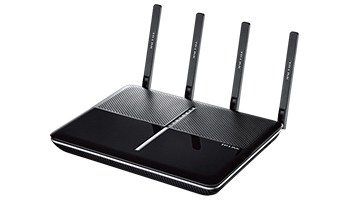

Overview

    4-Stream for the Fastest Wi-Fi Speeds – The Archer C2600 reaches the fastest max speeds available over its 2.4GHz (800Mbps) and 5GHz (1733Mbps) bands
    Run Multiple Devices Simultaneously – The Archer C2600 operates 3x faster by running MU-MIMO to serve multiple devices at once instead of one at a time
    Multi-Task without Slowing Down – A powerful 1.4GHz dual-core processor lets you smoothly surf, stream, and game at the same time
    Maximum Range – 4 dual band detachable high performance antennas provide maximum Omni-directional wireless coverage with beamforming technology
    TP-LINK Tether App – TP-LINK Tether provides the easiest way to access and manage the router on your iOS and Android devices

Specifications

HARDWARE FEATURES
Interfaces     4 10/100/1000Mbps LAN Ports,
1 10/100/1000Mbps WAN Port
2 USB 3.0 Ports
Button     Wireless On/Off Button
Power On/off Button
LED On/off Button
WPS Button
Reset Button
Antenna     4 Detachable antennas
External Power Supply     12V/4A
Dimensions ( W x D x H )     10.4 X 7.8 X 1.5 in. (263.8 X 197.8 X 37.3mm)
WIRELESS FEATURES
Wireless Standards     IEEE 802.11ac/n/a 5GHz
IEEE 802.11b/g/n 2.4GHz
Frequency     2.4GHz and 5GHz Band
Signal Rate     5GHz Band: Up to 1733Mbps
2.4GHz Band: Up to 800Mbps
Reception Sensitivity     5GHz:
11a 6Mbps: -91dBm
11a 54Mbps: -73dBm
11ac HT20: -66dBm
11ac HT40: -67dBm
11ac HT80: -58dBm
2.4GHz
11g 54M: -76dBm
11n HT20: -73dBm
11n HT40: -71dBm
Wireless Functions     Enable/Disable Wireless Radio, WMM, Wireless Statistics
Wireless Security     64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA-PSK2 encryptions
Transmission Power     CE:
<20dBm(2.4GHz)
<23dBm(5GHz)
FCC:
<30dBm
Guest Network     2.4GHz guest network × 1
5GHz guest network × 1
SOFTWARE FEATURES
Quality of Service     WMM, Bandwidth Control
Access Control List     Parental Control, Local Management Control, Host List, Access
Schedule, Rule Management
WAN Type     Dynamic IP/Static IP/PPPoE/
PPTP(Dual Access)/L2TP(Dual Access)/BigPond
Management     Access Control
Local Management
Remote Management
DHCP     Server, Client, DHCP Client List,
Address Reservation
Port Forwarding     Virtual Server, Port Triggering, UPnP, DMZ
Dynamic DNS     DynDns, NO-IP
VPN Pass-Through     PPTP, L2TP, IPSec
Protocols     Supports IPv4 and IPv6
USB Sharing     Support Samba(Storage)/FTP Server/Media Server/Printer Server
OTHERS
Certification     CE, FCC, RoHS
Package Contents     AC 2600 Wireless Dual Band Gigabit Router Archer C2600
Power Adapter
RJ45 Ethernet Cable
Quick Installation Guide
System Requirements     Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7, Windows 8/8.1/10
MAC OS, NetWare, UNIX or Linux
Environment     Operating Temperature: 0℃~40 ℃ (32 ℉~104℉)
Storage Temperature: -40℃~70 ℃ (-40 ℉~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
