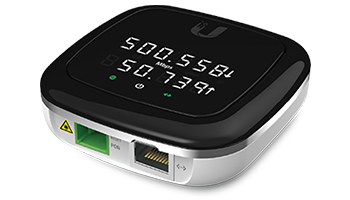

Ubiquiti UFiber UF-Nano G GPON Gigabit Optical Network Unit

The Ubiquiti UFiber UF-Nano G is a fiber solutions utilising Gigabit Passive Optical Network (GPON) technology. The UFiber UF-Nano G is a robust, high performance GPON CPE, which features an informational LED display and a sleek, sophisticated industrial design.

Ubiquiti UFiber UF-Nano G Key Features

    WAN: (1) GPON Port
    LAN: (1) Gigabit Ethernet Port
    GPON Speeds: 2.488 Gbps Downstream (RX), 1.244 Gbps Upstream (TX)
    Wavelengths: 1490 nm Downstream (RX), 1310 nm Upstream (TX)
    Robust ONU CPE
    Compatible with 3rd-Party OLTs
    Gigabit PoE Powered

Status Display
The easy-to-read display provides status information: IP address, signal strength, and current throughput.

Ubiquiti UFiber UF-Nano G - Technical Specifications
General

    Dimensions 77 x 77 x 28 mm (3.03 x 3.03 x 1.1")
    Weight 110 g (3.88 oz)
    Networking Interface Speeds (1) GPON WAN, ITU G.984,
    2.488 Gbps Downstream,
    1.244 Gbps Upstream
    (1) GbE LAN, 10/100/1000 Mbps
    Management Interface In-Band Ethernet/PON
    Normal Optical Power Range
    TX (Class B+): 1.5 dBm to 5 dBm
    RX: -8 dBm to -28 dBm
    Power Method
    Passive PoE (Pins +4, 5; -7, 8)
    Dying Gasp Support
    Power Supply PoE Adapter: 24V, 0.3A (Included)
    Max. Power Consumption 7W
    Supported Voltage Range 20V to 28V
    Processor Specs MIPS-32, 240 MHz
    Memory Information 128 MB DDR3
    Buttons
    (1) Display Information
    (1) Reset
    Operating Temperature -10 to 45° C (14 to 113° F)
    Operating Humidity 5 to 95% Noncondensing
    Certifications CE, FCC, IC

Model Specifications

    PoE Input 24V passive
    Networking Interface GPON (SC/APC), Ethernet (RJ-45)
    Operation mode Bridge only (router mode coming soon as a firmware update)
    Supported OLTs UFiber OLT (coming soon), list of supported third-party OLTs
