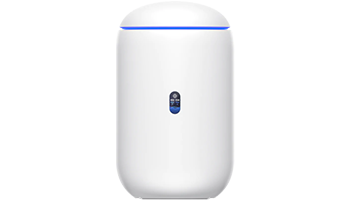

UBIQUITI UDR-EU UniFi all-in-one desktop router
Network Device Type
Network Device Type Router/Range Extender
Data Link Protocol Supports (New) Wi-Fi + LAN + Bluetooth
CPU and Memory
CPU ARM Cortex-A53
CPU Core Quantity 2
Internal Clock Rate 1.35 GHz
Installed RAM 2 GB
External Connections
External Connection Type 1 x WAN (
Wireless Networking
Wireless Networking IEEE 802.11a 2.4 GHz, up to 54 Mbps
IEEE 802.11b 2.4 GHz, up to 11 Mbps
IEEE 802.11g 2.4 GHz, up to 54 Mbps
IEEE 802.11n 2.4 GHz, up to 600 Mbps
IEEE 802.11ac 5 GHz, up to 1.7 Mbps
IEEE 802.11ax 5 GHz, up to 2.5 Mbps
Encryption Algorithm WEP
WPA-PSK
WPA
WPA2
WPA3
WPA3-Enterprise
LAN Connections
LAN 4 x Gigabit Ethernet/Fast Ethernet/Ethernet (10Base-T/100Base-TX/1000Base-T)
Switching and Routing Features
Supported Networking Compliant Standards IEEE 802.11a
IEEE 802.11b
IEEE 802.11g
IEEE 802.1Q(VLAN)
IEEE 802.3af
IEEE 802.11ac Wi-Fi 5
IEEE 802.11ax Wi-Fi 6
Features
Router Features Power over Ethernet (PoE)
Multiple Input Multiple Output (MIMO)
Dual Band
Antenna Internal
Device Location External
Status LED Indicators Activity Status
Certifications CE, FCC, IC
Built-in Devices Reset Button
Included Accessories Quick Start Guide
Interface Provided
LAN 4 (RJ-45)
WAN 1 (RJ-45)
Power
Power Device Location Internal
Maximum Input Current 1.1 A
Maximum Input Frequency 60 Hz
Minimum Input Frequency 50 Hz
Maximum Input Voltage 240 V
Minimum Input Voltage 100 V
Maximum Power Consumption 50 W
Dimensions & Weight
Width (mm) 184.13 mm
Height (mm) 110 mm
Depth (mm) 110 mm
Nominal Weight 1.15 kg
External Colour White
Environment
Maximum Operating Ambient Temperature 45 °C
Maximum Operating Humidity -10 %
Minimum Operating Ambient Temperature 95 °C
Minimum Operating Humidity 5 %
Warranty
Warranty Products Returnable Yes
Warranty Validation Criteria Serial Number
Warranty Term Notes 24 months - for EU
Logistic
Pack Weight Brutto (kg) 1.15 kg
Pack Weight Netto (kg) 1.15 kg
Pieces in pack 1
Box Weight Brutto (kg) 1.15 kg
Retail Packaging Net Weight Carton 1.15 kg
Retail Packaging Net Weight Plastic 1.15 kg
Packs in Box 1
Package Type Box
