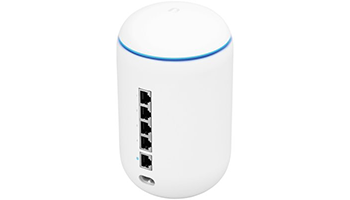

UBIQUITI UDM-EU UniFi Dream Machine
Network Device Type
Network Device Type Router / Range Extender / Access Point
Data Link Protocol Supports (New) Wi-Fi + LAN
CPU and Memory
ARM Cortex-A57 processor
Number of CPU cores 4
Internal clock frequency 1.7 GHz
Installed flash memory capacity 16 GB
Installed RAM 2 GB
Wireless networks
IEEE 802.11ac 5 GHz wireless networks, up to 58 Mbps
IEEE 802.11a 5 GHz, up to 54 Mbps
IEEE 802.11n IEEE 802.11n IEEE 802.11b IEEE 802.11b 2.4 GHz, up to 300 Mbps
IEEE 802.11g IEEE 802.11g 2.4 GHz, up to 54 Mbps
TKIP encryption algorithm
WEP
WPA-PSK
WPA2
AES
LAN Connections
LAN 4 x Gigabit Ethernet / Fast Ethernet / Ethernet (10Base-T / 100Base-TX / 1000Base-T,
Switching and Routing Features
Supported Networking Compliant Standards IEEE 802.11a
IEEE 802.11b
IEEE 802.11g
IEEE 802.1Q (VLAN)
IEEE 802.11n Wi-Fi 4
IEEE 802.11ac Wi-Fi 5
IEEE 802.11w
Supported Protocols
Protocols (OSI Model) QoS
Features
Router Features Dual Band
MU-MIMO
Voice Commands Support
Antenna Indoor
Device location External
Status LED Indicators Activity Status
Certificates CE, FCC, IC
Built-in Reset Button devices
Accessories included Quick Start Guide
Supported interfaces
LAN 4 (RJ-45)
WAN 1 (RJ-45)
Voice Assistant
Voice Assistant Support Yes
Power
Power supply location Internal
Maximum input frequency 60 Hz
Minimum input frequency 50 Hz
Maximum input voltage 240 V
Minimum input voltage 100 V
Maximum power consumption 26 W
Dimensions & Weight
Height 182.2 mm
Depth 110 mm
Nominal weight 1.05 kg
Exterior color White
Operating conditions
Max. operating ambient temperature 45 V ° C
Max. ambient humidity 95%
Min. operating ambient temperature -10 V ° C
Min. operating humidity 5%
Warranty
Warranty products - refundable Yes
Warranty validity criteria Serial number
Logistic information
Package weight - Gross (kg) 3.5 kg
