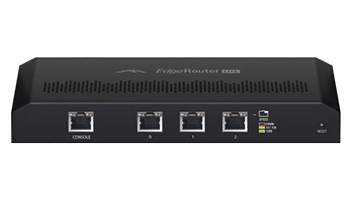

The Ubiquiti EdgeMAX EdgeRouter Lite 3-Port is housed in a compact, fanless form factor meaning operation is quiet. The EdgeRouter Lite is part of the Ubiquiti EdgeMAX series and delivers the powerful routing, security, and management features that are required to efficiently run networks.

Ubiquiti EdgeRouter Lite Key Features

    Performance - 1 million pps
    Gigabit RJ45 Ports - 3
    SFP Ports - N/A
    PoE - N/A
    Sophisticated Routing Features
    Advanced Security, Monitoring, and Management
    High-Performance Gigabit Ports
    Product Model Number: ERLite-3
    Deep Packet Inspection Technology

Direct Traffic Flow


Interfaces Each Gigabit port functions as an independent interface. You can also configure Virtual Local Area Network (VLAN) interfaces to meet your network segmentation requirements.

Secure Your Network

Firewall Policies Organize the rules you apply in the order you specify.

Firewall Groups Apply the policies to groups filtered by IP address, network address, or port number.

NAT Rules The EdgeRouter Lite changes packet addressing based on your customized source and destination NAT rules.

Manage Your Network

DHCP Server Set up multiple DHCP servers to assign IP ranges in different subnets on the different interfaces. Easily control dynamic and static IP addressing for your network devices.

Monitoring Tools Conveniently track network activity and devices from tools such as Ping, Trace, Discover,Packet Capture, and Log Monitor.

User Accounts Manage access to the EdgeRouter Lite using unique administrator and operator accounts.With these capabilities and more, the EdgeRouter Lite provides the centralized control you want to optimize the performance and reliability of your network.

Deep Packet Inspection
Previously available only on security gateways priced from $10,000 to more than $100,000, Deep Packet Inspection (DPI) is now available from Ubiquiti Networks. Introducing DPI technology for the mainstream market with the latest software release (v1.7.0) for the EdgeRouter Lite, EdgeRouter PoE, EdgeRouter, and EdgeRouter PRO.

DPI is more advanced than conventional Stateful Packet Inspection (SPI) filtering. Ubiquiti’s proprietary DPI engine includes the latest application identification signatures to track which applications (and IP addresses) are using the most bandwidth
Ubiquiti EdgeMAX EdgeRouter Lite - Technical Specifications
EdgeRouter Lite

    Dimensions 197.52 x 91 x 28 mm
    Weight 289.2 g
    Power Input 12VDC, 1A Power Adapter (Included) 9 to 24V (Supported Voltage Range)
    Button Reset
    Processor Dual-Core 500 MHz, MIPS64 with Hardware Acceleration for Packet Processing
    System Memory 512 MB DDR2 RAM
    Onboard Flash Storage 2 GB
    Certifications CE, FCC, IC
    Wall-Mount Yes
    Operating Temperature ‑10 to 45°C (14 to 113°F)
    Operating Humidity 90% Non-Condensing

Layer 3 Forwarding Performance

    Packet Size: 64 Bytes 1,000,000 pps
    Packet Size: 512 Bytes or Larger 3 Gbps (Line Rate)

LEDs Per Port

    Serial Console Port Power
    Data Ports Speed/Link/Activity

Networking Interfaces

    Serial Console Port (1) RJ45 Serial Port
     Data Ports (3) 10/100/1000 Ethernet Ports
