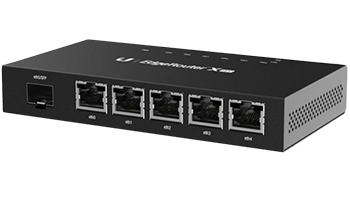

The Ubiquiti EdgeRouter X SFP is powered by an external power adapter. The five Gigabit RJ45 ports support 24V passive PoE output for airMAX or UniFi® devices, while its SFP port provides fiber connectivity to support backhaul applications.

Ubiquiti EdgeRouter X SFP Key Features

    (5) Gigabit RJ45 ports with passive PoE support
    (1) Gigabit SFP port for backhaul applications
    Ports configurable for line-rate, Layer-2 switching
    130 kpps for 64-byte packets
    1 Gbps for 1518-byte packets
    Product Model Number: ER-X-SFP

Powered by a proprietary and intuitive graphical interface, EdgeOSTM, every ER-X-SFP can easily be configured for the routing, security, and management features required to efficiently run your network. For advanced network professionals, an integrated CLI is available for quick and direct access using familiar commands.

The EdgeRouter X SFP provides a graphical user interface designed for convenient setup and control. Accessed via a network port and web browser, the user provides intuitive management with a virtual view of the ports, displaying physical connectivity, speed, and status.

The Dashboard displays detailed statistics: IP information, MTU, transmit and receive speeds, and status for each physical and virtual interface.
Ubiquiti EdgeRouter X SFP - Technical Specification
General

    Dimensions 142 x 75 x 23 mm (5.59 x 2.95 x 0.91")
    Weight 215 g (7.58 oz)
    Max. Power Consumption 5W
    Max. Total PoE Output 50W @ 24V
    PoE Output Passive 24V (Pins 4, 5+; 7, 8-)
    Power Input 24VDC, 2.5A Power Adapter (Included)
    Power Supply External AC/DC Adapter
    Supported Voltage Range 9 to 26VDC
    Button Reset
    LED Power, Link/Activity (6), PoE (5)
    Processor Dual-Core 880 MHz, MIPS1004Kc
    System Memory 256 MB DDR3 RAM
    Code Storage 256 MB NAND
    Certifications CE, FCC, IC
    Wall-Mount Yes
    ESD/EMP Protection Air: ± 24 kV, Contact: ± 24 kV
    Operating Temperature -10 to 45° C (14 to 113° F)
    Operating Humidity 10 to 90% Noncondensing

Networking Interfaces

    Data/PoE Output Port (5) 10/100/1000 RJ45 Ports
    Data Port (1) 100/1000 SFP Port

PoE with 24VDC Power Adapter

    PoE Out Voltage Range 22-24VDC
    Max. PoE Wattage Per
    Data/PoE Output Port 12W (24V)
    Max. PoE Wattage Combined
    (All 5 Data Ports) 50W
    PoE Method Passive
