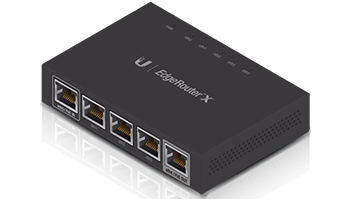

The Ubiquiti EdgeRouter X combines carrier-class reliability with excellent price‐to‐performance value ultra‐compact form factor. The ER-X can be powered by an external power adapter or 24V passive PoE input. A passive PoE passthrough option is available to support a single airMAX device.

Ubiquiti EdgeRouter X Key Features

    (5) Gigabit RJ45 ports
    Passive PoE passthrough option*
    Power via 24V passive PoE or power adapter
    Ports configurable for line-rate, Layer-2 switching
    130 kpps for 64-byte packets
    1 Gbps for 1518-byte packets
    Product Model Number: ER-X

Powered by a proprietary and intuitive graphical interface, EdgeOSTM, every EdgeRouter X can easily be configured for the routing, security, and management features required to efficiently run your network. For advanced network professionals, an integrated CLI is available for quick and direct access using familiar commands.

The EdgeRouter X provides a graphical user interface designed for convenient setup and control. Accessed via a network port and web browser, the user provides intuitive management with a virtual view of the ports, displaying physical connectivity, speed, and status.

The Dashboard displays detailed statistics: IP information, MTU, transmit and receive speeds, and status for each physical and virtual interface.
Ubiquiti EdgeRouter X - Technical Specification
General

    Dimensions 110 x 75 x 22 mm (4.33 x 2.95 x 0.87")
    Weight 175 g (6.17 oz)
    Max. Power Consumption 5W
    Power Input 12VDC, 0.5A Power Adapter (Included) or 24V Passive PoE
    Power Supply External AC/DC Adapter
    Supported Voltage Range 9 to 26VDC
    Button Reset
    LED Power, Ethernet 0-4
    Processor Dual-Core 880 MHz, MIPS1004Kc
    System Memory 256 MB DDR3 RAM
    Code Storage 256 MB NAND
    Certifications CE, FCC, IC
    Wall-Mount Yes
    ESD/EMP Protection Air: ± 24 kV, Contact: ± 24 kV
    Operating Temperature -10 to 45° C (14 to 113° F)
    Operating Humidity 10 to 90% Noncondensing

Networking Interfaces

      Data/PoE Input Port (1) 10/100/1000 RJ45 Port
    Data Ports (3) 10/100/1000 RJ45 Ports
    Data/PoE Passthrough Port (1) 10/100/1000 RJ45 Port
