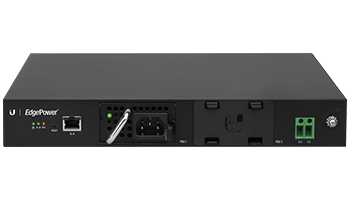

Ubiquiti EdgePower EP-54V-150W Modular DC Power Supply for EdgePoint

The Ubiquiti EdgePower EP-54V-150W is a high-power, modular PSU system designed to connect to EdgePoint™ routers/switches and provide reliable power to attached PoE devices.

Ubiquiti EdgePower EP-54V-150W Features

    Flexible, Modular PSU Design
    Supports up to Two 150W PSU Modules
    Modular DC Power Supply for EdgePoint


Versatile, Modular Design

The rack-mountable EdgePower features two PSU bays. One 54V, 150W AC-DC module is included, and an optional AC-DC or DC-DC module is available.



Modular DC Power Supply for EdgePoint

The EdgePower EP-54V-150W Modular DC Power Supply for EdgePoint is a high-power,modular PSU system designed to connect to EdgePoint routers/switches and provide reliable power to attached PoE devices.The EdgePower uses modular PSUsfor flexible configuration options. The EdgePower can utilise two modular PSUsto provide up to 300W of power, or be configured to provide up to 150W of power with an automatic PSU backup.

High Power

The Edge Power provides up to 150W of power output. With an optional PSU in the secondary bay, the EdgePower maybe configured to deliver up to 300W of power.



Backup PSU

The secondary PSU may be configured as a backup PSU. In backup mode,the secondary PSU remains inactiveand offline. If failure of the primary PSU is detected, the secondary PSUautomatically activates to supply continuous power.



Web UI

Designed for convenient management,the EdgePower Configuration Interface allows administrators to configureand monitor PSU features in a simple, graphical user interface.The EdgePower may be connected to the LAN for remote monitoring and configuration.

EdgePower Tower Deployment Example


Remote Monitoring and Configuration

Designed for convenient management, the EdgePower Configuration Interface allows administrators to configure and monitor PSU features in a simple, graphical user interface.



Outdoor DC Power Cabling

Manufactured to engineering specifications to supply reliable power to your EdgePoint devices. Available in 1000 ft. reels.

    All-Weather, UV-Resistant
    12 AWG Tinned Stranded Copper
    Fire-Resistant Polyethylene Jacket (FT-1)
    Temperature Range: -30 to 90° C
    Pull Tension: 80 lb Minimum
    Capacitance: 28 pF/ft @ 1 kHz
    DCR: 1.77 Ω/1000 ft @ 20° C
    Voltage Rating: 300V
    Impedance: 56 Ω

Ubiquiti EdgePower EP-54V-150W Technical Specifications
Overview

    Dimensions without Mount Brackets 299.8 x 286.9 x 42.55 mm
    (11.89 x 11.3 x 1.675")
    Weight without Mount Brackets 2.7 kg (5.95 lb)
    Power Method 100-240VAC/50-60 Hz, Universal Input
        Power Supply Module 54V, 150W AC/DC,
        Model EP-54V-150W-AC,
        Installed in PSU 1
    Maximum Power Output 150W (1 PSU Module)
    300W (2 PSU Modules @ 150W Each)
    LEDs
        Power System On/Off
        Ethernet Management Port Link
        PSU PSU1+PSU2, PSU1/PSU2
    Networking Interface (1) 10/100 RJ45 Ethernet
    Management Interface Ethernet In-Band, Web UI
    Rack-Mount Yes, 1U High
    Operating Temperature 0 to 40° C (32 to 104° F)
    Operating Humidity 10 to 90% RH
    ESD/EMP Protection Air ± 24KV; Contact ± 24KV
    Certifications CE, FCC, IC
