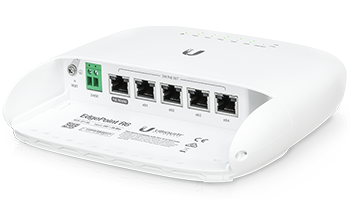

Ubiquiti EdgePoint EP-R6 Layer-3 router WISP Control Point

The Ubiquiti EdgePoint EP-R6 Layer-3 router is an intelligent WISP Control Point with FiberProtect. The Ubiquiti EdgePoint - EP-R6 is the first application-specific designed WISP control point, the EdgePoint combines the advanced routing capabilities of EdgeMAX with fiber backhaul and versatile powering capabilities.

Ubiquiti EdgePoint - EP-R6 Layer-3 router WISP Control Point Features

    Weatherproof Enclosure for Outdoor Use
    Powerful Routing or Switching Features
    Fiber Backhaul Capability

All-in-One Design

A single, compact controller efficiently eliminates clutter, expensive cabinets, extraneous installations, and excessive maintenance.


Breakthrough in Tower Deployment

The EdgePoint features FiberProtect to significantly reduce electrostatic discharge (ESD) failures and electromagnetic interference (EMI), greatly improve data signal integrity, and consolidate the wired data backhaul to a single fiber cable run for long-distance connectivity.

Robust Construction

The ruggedized case withstands outdoor conditions, including wind, rain, and snow. The included cable sleeve protects the cables and cable opening. If you prefer, you can swap it out for your own conduit.


Intuitive User Interface

The EdgePoint provides a graphical user interface designed for convenient setup and control. Accessed via a network port and web browser, the user-friendly interface provides intuitive management with a virtual view of the ports, displaying physical connectivity, speed, and status.


Ubiquiti EdgePoint EP-R6 Technical Specifications
Overview

    188.6 x 177.1 x 49.8 mm (7.43 x 6.97 x 1.96")
    Weight 605 g (1.33 lb)
    Max. Power Consumption 7W (Excludes PoE Output)
    Power Input
    (1) DC Terminal Block or
    (1) RJ45 (eth0) (Self-Correcting Polarity Protection on DC Terminal Block Only,
    Diode ORed Protection on All Power Inputs)
    Power Supply
    Min. 24V / 0.3A (Excludes PoE Output Power)
    VDC Input 24V, 3A
    Passive PoE Input
    (1) 24V / 1.4A, 4-Pair (+1, 2, 4, 5; -3, 6, 7, 8) Passive PoE, eth0
    (Do NOT Configure eth0 in PoE Output Mode
    if You Are Using a PoE Input Power Source.)
    Passive PoE Output
    (5) 24V / 0.7A, 2-Pair (+4, 5; -7, 8) Passive PoE, eth0 to eth4
    Power Monitoring
    (1) DC Terminal Block, Input Power
    (1) RJ45, eth0, Input Power
    Supported Voltage Range 26 to 16VDC
    Button Reset
    LEDs
    System - Power
    eth0 to eth4 - Speed/Link/Activity, PoE
    eth5/SFP - Speed/Link/Activity
    Ports
    Data Ports
    (5) 10/100/1000 RJ45 Ports
    (1) 1 Gbps SFP Port
    Processor
    Dual-Core 880 MHz, MIPS1004Kc with
    Hardware Acceleration for Packet Processing
    System Memory 256 MB DDR3-1600 RAM
    Code Storage 256 MB NAND
    Certifications CE, FCC, IC
    Pole Mount Ye s
    Operating Temperature
    -20 to 65° C (-4 to 149° F)
    Operating Humidity
    10 to 90% Noncondensing
