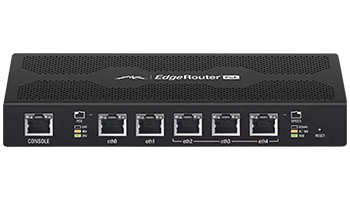

Ubiquiti EdgeMAX EdgeRouter PoE 5-Port Router (ERPoe-5)

The Ubiquiti EdgeMAX EdgeRouter PoE 5-Port Router is powered by the feature-rich EdgeOS, making it a versatile solution for any network. Combining one million packet-per-second routing, the EdgeRouter PoE 5-Port offers high-performance, hardware-based switching and PoE capabilities in an affordable and compact 5-port device.

Ubiquiti EdgeRouter PoE 5-Port Key Features

    Performance - 1 million pps
    Gigabit RJ45 Ports - 5
    PoE - 24V/48V Passive PoE
    3 Gbps for packets 512 bytes or larger in size
    10/100/1000 Ethernet ports that support 24V or 48V PoE output with software-selectable voltage control
    Hardware-accelerated routing (Layer-3 base forwarding): 1,000,000 pps for 64-byte packets
    Built-in hardware switch allows line-rate layer-2 switching

Powerful Routing Performance
The EdgeRouter PoE 5-port routes up to 1 million packets per second to meet the needs of carrier-class networks.



Ubiquiti EdgeMAX EdgeRouter PoE 5-Port Router - Technical Specifications
General

    Dimensions: 200 x 90 x 30 mm
    Weight: 360 g
    Power: 24VDC, 2.5A Power Adapter (Included)
    Power Input: 24VDC Input (Supported Range: 18 to 26VDC) or 48VDC Input (Supported Range: 38 to 54VDC)
    Button: Reset
    Processor: Dual-Core 500 MHz, MIPS64 with Hardware Acceleration for Packet Processing
    System Memory: 512 MB DDR2 RAM
    On-Board Flash Storage: 2 GB
    Certifications: CE, FCC, IC
    Wall-Mount: Yes
    Operating Temperature: -10 to 45° C
    Operating Humidity: 90% Non-Condensing

Layer 3 Forwarding Performance

    Packet Size 64 Bytes: 1,000,000 pps
    Packet Size 512 Bytes or Larger: 3 Gbps (Line Rate)

LEDs Per Port

    Serial Console Port: Power
    Data Ports: PoE, Speed/Link/Activity

PoE Configurable Per Port

    Serial Console Port: N/A
    Data Ports: Off/24V/48V

Networking Interfaces

    Serial Console Port: (1) RJ45 Serial Port
    Data Ports: (2) 10/100/1000 Ethernet Router Ports (3) 10/100/1000 Ethernet Router/Switch Ports
