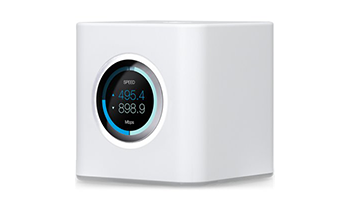

UBIQUITI AFI-R-EU AmpliFI HD Mesh Router
Ubiquiti AmpliFI HD Mesh Router, Dual-Band 802.11AC 3X3 MIMO Wi-Fi, Wi-Fi/Gigabit Ethernet (1) WAN, (4) LAN, 802.11ac 13 Mbps to 1300 Mbps,6.5 Mbps to 450 Mbps
Network Device Type
Network Device Type Router / Range Extender
Data Link Protocol Supports (New) Wi-Fi + LAN
External Connections
External Connection Type 1 x WAN (up to 1 Gbps)
Wireless networks
IEEE 802.11ac wireless networks (up to 1300 Mbps)
IEEE 802.11a (up to 54 Mbps)
IEEE 802.11b (up to 11 Mbps)
IEEE 802.11g (up to 54 Mbps)
IEEE 802.11n (up to 450 Mbps)
TKIP encryption algorithm
WPA2-PSK
AES
LAN Connections
LAN 4 x Gigabit Ethernet / Fast Ethernet / Ethernet (10Base-T / 100Base-TX / 1000Base-T, up to 1 Gbps)
Switching and Routing Features
Supported Networking Compliant Standards IEEE 802.11a
IEEE 802.11b
IEEE 802.11g
IEEE 802.3
IEEE 802.3ab
IEEE 802.3u
IEEE 802.11n
IEEE 802.11ac
Features
Router Features Web Interface
Dual Band
Access Point
3x3 PASS
Antenna Indoor
Number of antennas for wireless network 1
Device location External
FCC / CE / IC certificates
Built-in LCD Touchscreen Display devices
LED indicator
Supported interfaces
WAN 1 (RJ-45)
LAN 4 (RJ-45)
USB 1
Power
Maximum power consumption 11 W
Dimensions & Weight
Width 99.5 mm
Height 97.8 mm
Depth 99.6 mm
Nominal weight 0.41 kg
Exterior color White
Package type With packaging
Operating conditions
Max. operating ambient temperature 55 V ° C
Min. operating ambient temperature -10 V ° C
Warranty
Warranty products - refundable Yes
Warranty validity criteria Serial number
Logistic information
Package weight - Gross (kg) 1.5 kg
