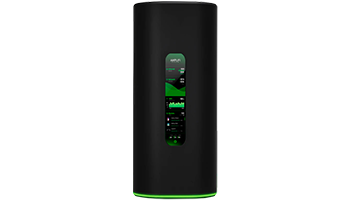

UBIQUITI AFI-ALN-R-EU AmpliFi Alien Router
Network Device Type
Network Device Type Router
Data Link Protocol Supports (New) Wi-Fi + LAN
CPU and Memory
ARM Cortex-A53 processor
Number of CPU cores 4
Internal clock frequency 2.2 GHz
1 GB RAM installed
External Connections
External Connection Type 1 x WAN (up to 1 Gbps)
Wireless networks
WPA2 encryption algorithm
LAN Connections
LAN 4 x Gigabit Ethernet / Fast Ethernet / Ethernet (10Base-T / 100Base-TX / 1000Base-T, up to 1 Gbps)
Switching and Routing Features
OFDMA modulation type
Supported Networking Compliant Standards IEEE 802.11a
IEEE 802.11b
IEEE 802.11g
IEEE 802.1p (QoS)
IEEE 802.1Q (VLAN)
IEEE 802.11n Wi-Fi 4
IEEE 802.11ac Wi-Fi 5
IEEE 802.11ax Wi-Fi 6
Features
Router Features Beamforming Technology
4x4 MIMO
8x8 MU-MIMO
Antenna Indoor
Number of antennas for wireless network 2
Device location External
Status LED Indicators Activity Status
Certificates CE, FCC, IC
Built-in LCD Touchscreen Display devices
Reset Button
Supported interfaces
WAN 1 (RJ-45)
LAN 4 (RJ-45)
Power
Power Location External
Maximum input current 1 A
Maximum input frequency 60 Hz
Minimum input frequency 50 Hz
Maximum input voltage 240 V
Minimum input voltage 100 V
Maximum power consumption 35 W
Dimensions and weight
Width 110 mm
Height 250 mm
Depth 110 mm
Nominal weight 1.2 kg
Exterior color Black
Operating conditions
Max. operating ambient temperature 45 ° C
Max. ambient humidity 95%
Min. operating ambient temperature -10 ° C
Min. operating humidity 5%
Warranty
Warranty products - refundable Yes
Warranty validity criteria Serial number
Logistic information
Package weight - Gross (kg) 1 kg
