Overview


    150Mbps wireless data rates ideal for video streaming, online gaming and internet calling
    Wireless security encryption easily at a push of WPS button
    IP based bandwidth control allows administrators to determine how much bandwidth is allotted to each PC
    WDS wireless bridge provides seamless bridging to expand your wireless network


Specifications

HARDWARE FEATURES

Interface     4 10/100Mbps LAN PORTS
1 10/100Mbps WAN PORT
Button     WPS/Reset Button
Power On/Off Button
Antenna     5dBi Detachable Omni Directional (RP-SMA)
External Power Supply     5VDC/0.6A
Wireless Standards     IEEE 802.11n*, IEEE 802.11g, IEEE 802.11b
Dimensions ( W x D x H )     6.9 x 4.6 x 1.3 in. (174 x 118 x 33 mm)
WIRELESS FEATURES
Frequency     2.4-2.4835GHz
Signal Rate     11n: Up to 150Mbps(dynamic)
11g: Up to 54Mbps(dynamic)
11b: Up to 11Mbps(dynamic)
Reception Sensitivity     130M: -68dBm@10% PER
108M: -68dBm@10% PER
54M: -68dBm@10% PER
11M: -85dBm@8% PER
6M: -88dBm@10% PER
1M: -90dBm@8% PER
Transmit Power     CE:
<20dBm(2.4GHz)
FCC:
<30dBm
Wireless Functions     Enable/Disable Wireless Radio, WDS Bridge, WMM, Wireless Statistics
Wireless Security     64/128/152-bit WEP / WPA / WPA2,WPA-PSK / WPA2-PSK
SOFTWARE FEATURES
Quality of Service     WMM, Bandwidth Control
WAN Type     Dynamic IP/Static IP/PPPoE/
PPTP(Dual Access)/L2TP(Dual Access)/BigPond
Management     Access Control
Local Management
Remote Management
DHCP     Server, Client, DHCP Client List,
Address Reservation
Port Forwarding     Virtual Server,Port Triggering, UPnP, DMZ
Dynamic DNS     DynDns, Comexe, NO-IP
VPN Pass-Through     PPTP, L2TP, IPSec (ESP Head)
Access Control     Parental Control, Local Management Control, Host List, Access Schedule, Rule Management
Firewall Security     DoS, SPI Firewall
IP Address Filter/MAC Address Filter/Domain Filter
IP and MAC Address Binding
Protocols     Support IPv4 and IPv6
Guest Network     2.4GHz Guest Network x1
OTHERS
Certification     CE, FCC, RoHS

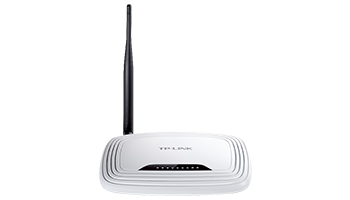

Package Contents     TL-WR741ND
1 detachable Omni directional antenna
Power supply unit
Resource CD
Ethernet Cable
Quick Installation Guide
System Requirements     Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7, Windows 8/8.1/10
MAC® OS, NetWare®, UNIX® or Linux
Environment     Operating Temperature: 0℃~40℃ (32℉~104℉)
Storage Temperature: -40℃~70℃ (-40℉~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
