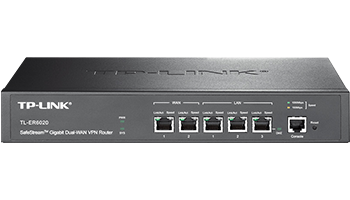

TP-LINK TL-ER6020 v.1 SafeStream Gigabit Dual-WAN VPN Router

129.90 €
Συμπεριλαμβάνεται Φ.Π.Α. 20%
χωρίς τα έξοδα αποστολής

Κωδικός: 22218

Βάρος: 0.650 kg
Σε απόθεμα

Τεχνικά Στοιχεία Βασικά Στοιχεία Αξιολόγηση

    2 Gigabit WAN ports, 2 Gigabit LAN ports, 1 Gigabit LAN/DMZ port and a console port
    Supports multiple VPN protocols including IPsec/PPTP/L2TP, which helps users establish their VPN more flexibly
    Supports up to 50 IPsec VPN tunnels with a hardware-based VPN engine
    Abundant security features including ARP Inspection, DoS Defense, URL/Keyword Domain Filter and Access Control
    Deploys One-Click restriction of IM/P2P applications to manage staff online behavior
    Professional 4kV lightning protection keeps your investments as safe as possible

    Up to 50 IPsec VPN Tunnels, 50Mbps IPsec VPN Throughput
    IPsec, PPTP, L2TP, L2TP over IPsec
    IPsec NAT Traversal (NAT-T)
    DES, 3DES, AES128, AES192, AES256 Encryption
    MD5, SHA1 Authentication
    Manual, IKE Key Management Mode
    LAN-to-LAN, Client-to-LAN IPsec VPN
    PPTP/L2TP VPN Server/Client
    Hardware DMZ port
    One-to-One NAT
    FTP/H.323/SIP/IPsec/PPTP ALG
    IM/P2P Application Blocking
    URL/Keywords Filtering
    Web Content Filtering (Java, ActiveX, Cookies)
    ARP Inspection
    DoS/DDoS Defense
    Intelligent Load Balance
    Policy Routing
    Link Backup (Timing, Failover)
    IP-based Bandwidth Control
    Guarantee & Limited Bandwidth
    IP-based Session Limit
    Port VLAN, Port Mirror
    Static Routing, RIP v1/v2
    PPPoE Server
    E-Bulletin

HARDWARE FEATURES
Standards and Protocols	IEEE 802.3, IEEE802.3u, IEEE802.3ab TCP/IP, DHCP, ICMP, NAT, PPPoE, SNTP, HTTP, DNS, IPsec, PPTP, L2TP
Interface	2 Gigabit WAN ports 2 Gigabit LAN ports 1 Gigabit LAN/DMZ port 1 Console Port (RJ-45 On RS232)
Network Media	10BASE-T: UTP category 3, 4, 5 cable (Max 100m) EIA/TIA-568 100Ω STP (Max 100m) 100BASE-TX: UTP category 5, 5e cable (Max 100m) EIA/TIA-568 100Ω STP (Max 100m) 1000BASE-T: UTP category 5, 5e, 6 cable (Max 100m)
Fan Quantity	Fanless
Button	Reset Button
Power Supply	Internal Universal Power Supply AC100-240V~ 50/60Hz Input
Dimensions (W X D X H)	11.67.11.7in. (29418044mm) 13-inch Standard Rack-Mount Width, 1U Height
Flash	16MB
DRAM	DDRII 128MB
LED	PWR, SYS, Link/Act, Speed, DMZ

PERFORMANCE
Concurrent Session	30000
NAT Throughput	180Mbps
IPsec VPN Throughput (3DES)	80Mbps

BASIC FUNCTIONS
DHCP	DHCP Server/Client DHCP Reservation
Switch Setting	Port Mirror Rate Control Port Config Port VLAN
WAN Connection Type	Dynamic IP, Static IP, PPPoE, PPTP, L2TP, Dual Access, BigPond
MAC Clone	Modify WAN/LAN/DMZ MAC Address

ADVANCED FUNCTIONS
Load Balance	Intelligent Load Balance Policy Routing Protocol Binding Link Backup (Timing, Failover) Online Detection
NAT	One-to-One NAT Multi-nets NAT Virtual Server, DMZ Host, Port Triggering, UPnP FTP/H.323/SIP/IPsec/PPTP ALG
Routing	Static Routing Dynamic Routing (RIP v1/v2)
System Mode	NAT, Non-NAT, Classical Routing
Traffic Control	IP-based Bandwidth Control Guarantee & Limited Bandwidth Time-scheduled Policy IP-based Session Limit

VPN
L2TP VPN	16 L2TP VPN Tunnels L2TP VPN Server/Client L2TP over IPsec
VPN Pass-through	IPsec (ESP), PPTP, L2TP
IPsec VPN	50 IPsec VPN Tunnels LAN-to-LAN, Client-to-LAN Main, Aggressive Negotiation Mode DES, 3DES, AES128, AES192, AES256 Encryption Algorithm MD5, SHA1 Authentication Algorithm Manual, IKE Key Management Mode IPsec NAT Traversal (NAT-T) Dead Peer Detection (DPD) Perfect Forward Secrecy (PFS)
PPTP VPN	16 PPTP VPN Tunnels PPTP VPN Server/Client PPTP with MPPE Encryption

SECURITY
ARP Inspection	Sending GARP Packets ARP Scanning by WAN/LAN IP-MAC Binding
Attack Defense	TCP/UDP/ICMP Flood Defense Block TCP Scan (Stealth FIN/Xmas/Null) Block Ping from WAN
Filtering	MAC Filtering URL/Keywords Filtering Web Content Filtering (Java, ActiveX, Cookies)
DMZ Port	1 Hardware DMZ Port
Application Control	IM, P2P, Web IM, Web SNS, Web Media, Protocol, Proxy Blocking

MANAGEMENT
Service	PPPoE Server E-Bulletin Dynamic DNS (Dyndns, No-IP, Peanuthull, Comexe)
Maintenance	Web/CLI/Telnet Management Interface Remote Management Export & Import Configuration NTP Synchronize Syslog Support

OTHERS
Certification	CE, FCC, RoHS
Package Contents	TL-ER6020 Resource CD Power Cord Ground Cable Rack-mount Kit Installation Guide
System Requirements	Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7, MAC® OS, NetWare®, UNIX® or Linux
Environment	Operating Temperature: 0℃~40℃ (32℉~104℉) Storage Temperature: -40℃~70℃ (-40℉~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing
