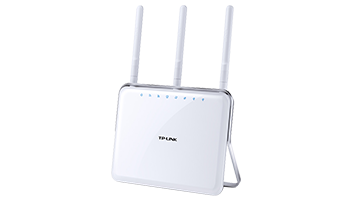

Overview

    Supports 802.11ac standard-the next generation of Wi-Fi
    Simultaneous 2.4GHz 600Mbps and 5GHz 1300Mbps connections for 1.9Gbps of total available bandwidth
    3 dual band detachable antennas provide maximum omni-directional wireless coverage and reliability
    Beamforming technology delivers highly efficient wireless connection
    1GHz dual-core processor ensures no interruption when simultaneously processing multiple wireless or wired tasks
    USB 3.0 + USB 2.0 Ports - easily share a printer locally and files & media with networked devices or remotely via FTP server


Specifications

HARDWARE FEATURES
Interface     4 10/100/1000Mbps LAN Ports,
1 10/100/1000Mbps WAN Port
1 USB 3.0 Port + 1 USB 2.0 Port
Button     WPS/Reset Button,
Wireless On/Off Button,
Power On/off Button
Dimensions (W X D X H)     8.7 X 3.4 X 6.6 in. (221 X 86 X 168.5mm)
Antenna     3 dual band detachable antennas
External Power Supply     12V/3.3A
WIRELESS FEATURES
Wireless Standards     IEEE 802.11ac/n/a 5GHz
IEEE 802.11b/g/n 2.4GHz
Frequency     2.4GHz and 5GHz
Signal Rate     5GHz: Up to 1300Mbps
2.4GHz: Up to 600Mbps
Reception Sensitivity     5GHz:
11a 6Mbps: -94dBm
11a 54Mbps: -76dBm
11ac HT20: -68dBm
11ac HT40: -64dBm
11ac HT80: -60dBm
2.4GHz
11g 54M: -77dBm
11n HT20: -73dBm
11n HT40: -71dBm
Transmit Power     CE:
<20dBm(2.4GHz)
<23dBm(5GHz)
FCC:
<30dBm
Wireless Functions     Enable/Disable Wireless Radio, WDS Bridge, WMM, Wireless Statistics
Wireless Security     64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA-PSK2 encryption
SOFTWARE FEATURES
Quality of Service     WMM, Bandwidth Control
WAN Type     Dynamic IP/Static IP/PPPoE/
PPTP(Dual Access)/L2TP(Dual Access)/BigPond
Management     Access Control
Local Management
Remote Management
DHCP     Server, Client, DHCP Client List,
Address Reservation
Port Forwarding     Virtual Server, Port Triggering, UPnP, DMZ
Dynamic DNS     DynDns, Comexe, NO-IP
VPN Pass-Through     PPTP, L2TP, IPSec
Access Control     Parental Control, Local Management Control, Host List, Access
Schedule, Rule Management
Firewall Security     DoS, SPI Firewall
IP Address Filter/MAC Address Filter/Domain Filter
IP and MAC Address Binding
Protocols     Supports IPv4 and IPv6
USB Sharing     Support Samba(Storage)/FTP Server/Media Server/Printer Server
Guest Network     2.4GHz guest network × 1
5GHz guest network × 1
OTHERS
Certification     CE, FCC, RoHS
Package Contents     AC 1900 Wireless Dual Band Gigabit Router Archer C9
3 detachable antennas
Power supply unit
Resource CD
Ethernet Cable
Quick Installation Guide
System Requirements     Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7, Windows 8/8.1/10
MAC OS, NetWare, UNIX or Linux
Environment     Operating Temperature: 0℃~40 ℃ (32 ℉~104℉)
Storage Temperature: -40℃~70 ℃ (-40 ℉~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
