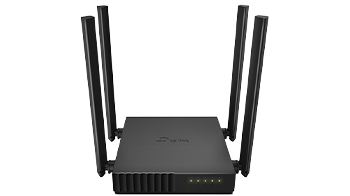

TP-Link Archer C54 AC1200 Dual Band Wi-Fi Router

    Faster AC Wi-Fi—AC1200 dual-band is ideal for HD video streaming and high-speed downloading.*
    Far-Reaching Coverage—4× antennas and Beamforming delivers extensive Wi-Fi coverage and reliable connections.
    Multi-Mode 3-in-1—Supports Router, Access Point, and Range Extender modes for added flexibility.
    Parental Controls—Manages when and how connected devices can access the internet.
    Guest Network—Provides separate access for guests in order to secure the host network.
    Smooth HD Streaming—Supports IGMP Proxy/Snooping, Bridge, and Tag VLAN to optimize IPTV streaming.
    IPv6 Supported—Compatible with the IPv6 (the latest Internet Protocol version 6).
    Compact and Mountable—Designed to conserve space and complement any décor.

    WIRELESS
Standards     Wi-Fi 5
IEEE 802.11ac/n/a 5 GHz
IEEE 802.11n/b/g 2.4 GHz
WiFi Speeds     AC1200
5 GHz: 867 Mbps (802.11ac)
2.4 GHz: 300 Mbps (802.11n)
WiFi Range     3 Bedroom Houses4× Fixed Antennas
Multiple antennas form a signal-boosting array to cover more directions and large areas

Beamforming

Concentrates wireless signal strength towards clients to expand WiFi range
WiFi Capacity     MediumDual-Band
Allocate devices to different bands for optimal performance

MU-MIMO

Simultaneously communicates with multiple MU-MIMO clients

Working Modes

Router Mode
Access Point Mode
Range Extender Mode

SECURITY

Network Security
SPI Firewall

Access Control

IP & MAC Binding

Application Layer Gateway

Guest Network
1× 5 GHz Guest Network
1× 2.4 GHz Guest Network

WiFi Encryption

WPA
WPA2
WPA3
WPA/WPA2-Enterprise (802.1x)

HARDWARE

Processor

Single-Core CPU

Ethernet Ports

1× 10/100 Mbps WAN Port
4× 10/100 Mbps LAN Ports

Buttons

WPS/Reset Button
Power     9 V ⎓ 0.85 A

SOFTWARE

Protocols

IPv4
IPv6

Parental Controls

URL Filtering
Time Controls

WAN Types

Dynamic IP
Static IP
PPPoE
PPTP
L2TP

Quality of Service
QoS by Device
NAT Forwarding
Port Forwarding
Port Triggering
DMZ
UPnP
IPTV     IGMP Proxy
IGMP Snooping
Bridge
Tag VLAN
DHCP  Address Reservation
DHCP Client List

Server

DDNS
NO-IP
DynDNS

Management

Tether App
Webpage

OTHER

System Requirements
Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser

Cable or DSL Modem (if needed)

Subscription with an internet service provider (for internet access)
Certifications     FCC, CE, RoHS
Environment     Operating Temperature: 0~40 (32 ~104)
Storage Temperature: -40~60 (-40 ~140)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
TEST DATA
WiFi Transmission Power     CE EIRP:
<20dBm(2.4GHz)
<23dBm(5GHz)
FCC:
<30dBm(2.4GHz & 5GHz)
WiFi Reception Sensitivity     5GHz:
11a 6Mbps:-93dBm；
11a 54Mbps:-78dBm；
11ac HT20 mcs8:69dBm;
11ac HT40 mcs9:-66dBm;
11ac HT80 mcs9:-62dBm;
2.4GHz:
11g 54Mbps:-78dBm;
11n HT20 mcs7:-74dBm;
11n HT40 mcs7:-71dbm；
PHYSICAL
Dimensions (W×D×H)     4.5 × 4.2 × 1.0 in
(115 × 106.7 × 24.3 mm)
Package Contents     Wi-Fi Router Archer C54
Power Adapter
RJ45 Ethernet Cable
Quick Installation Guide
