Overview


    Supports 802.11ac standard - the next generation of Wi-Fi
    Simultaneous 2.4GHz 300Mbps and 5GHz 867Mbps connections for 1.2Gbps of total available bandwidth
    Dual USB Ports - easily share a printer locally and files & media with networked devices or remotely via FTP server
    Guest Network Access provides secure Wi-Fi access for guests sharing your home or office network
    Easy network management at your fingertips with TP-LINK Tether

Specifications


HARDWARE FEATURES
Interface     4 10/100/1000Mbps LAN Ports
1 10/100/1000Mbps WAN Port
2 USB 2.0 Ports
Button     WPS/Reset Button
Wireless On/Off Switch
Power On/Off Button
Dimensions (W X D X H)     9.6x6.4x1.3 in. (243x160.6x32.5mm)
External Power Supply     12VDC / 2.5A
Antenna Type     2 dual band detachable antennas (RP-SMA)
WIRELESS FEATURES
Wireless Standards     IEEE 802.11ac/n/a 5GHz
IEEE 802.11n/g/b 2.4GHz
Frequency     5GHz and 2.4GHz
Signal Rate     5GHz: Up to 867Mbps
2.4GHz: Up to 300Mbps
Reception Sensitivity     5GHz:
11a 54Mbps: -74dBm
11ac HT20: -67dBm
11ac HT40: -63dBm
11ac HT80: -59dBm
11n HT20: -71dBm
11n HT40: -69dBm
2.4GHz:
11g 54M: -76dBm
11n HT20: -73dBm
11n HT40: -71dBm
Transmit Power     CE:
<20dBm(2.4GHz)
<23dBm(5GHz)
FCC:
<30dBm
Wireless Functions     Enable/Disable Wireless Radio, WDS Bridge, WMM, Wireless Statistics
Wireless Security     64/128-bit WEP, WPA / WPA2, WPA-PSK/ WPA2-PSK encryption
SOFTWARE FEATURES
Quality of Service     WMM, Bandwidth Control
WAN Type     Dynamic IP/Static IP/PPPoE/L2TP(Dual Access)/PPTP(Dual Access)
Management     Access Control
Local Management
Remote Management
DHCP     Server, Client, DHCP Client List,
Address Reservation
Port Forwarding     Virtual Server, Port Triggering, UPnP, DMZ
Dynamic DNS     DynDns, Comexe, NO-IP
VPN Pass-Through     PPTP, L2TP, IPSec
Access Control     Parental Control, Local Management Control, Host List, Access
Schedule, Rule Management
Firewall Security     DoS, SPI Firewall
IP Address Filter/MAC Address Filter/Domain Filter
IP and MAC Address Binding
Protocols     Supports IPv4 and IPv6
USB Sharing     Support Samba(Storage)/FTP Server/Media Server/Printer Server
Guest Network     2.4GHz guest network × 1
5GHz guest network × 1
OTHERS
Certification     CE, FCC, RoHS

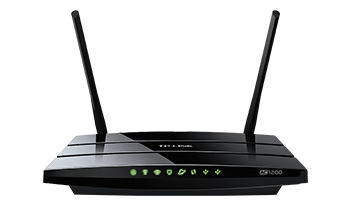

Package Contents     AC1200 Wireless Dual Band Gigabit Router Archer C5
2 detachable antennas
Power supply unit
Resource CD
Ethernet Cable
Quick Installation Guide
System Requirements     Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7, Windows 8/8.1/10
MAC OS, NetWare, UNIX or Linux
Environment     Operating Temperature: 0℃~40 ℃ (32 ℉~104℉)
Storage Temperature: -40℃~70 ℃ (-40 ℉~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
