Hardware

Chipsets


- MT7621A+MT7915DA+MT7975DN

Flash/RAM


- 16Mbyte/256Mbyte

Interface


- 4*1000Mbps LAN Ports
- 1*1000Mbps WAN Port

Power Supply


- 12V DC/1A
Antenna

-  4 * 5dBi fixed external antennas
LED  Indicators

- 1 *SYS(Blue)
- 4 *LAN(Green),
- 1 *WAN(Green)

Dimensions (L x W x H)


- 241.0 x 147.0 x 48.5mm

Wireless

Standards


- IEEE 802.11ax, IEEE 802.11ac, IEEE 802.11n,
- IEEE 802.11g, IEEE 802.11b, IEEE 802.11a

RF Frequency


- 2.4~2.4835GHz
- 5.18~5.825GHz
Data Rate

- 2.4GHz: Up to 573.5Mbps (2*2 40MHz)
- 5GHz: Up to 1201Mbps (2*2 80MHz)
EIRP

- 2.4GHz < 22dBm
- 5GHz < 20dBm

Wireless Security


- 64/128-bit WEP, WPA, WPA2 and WPA-Mixed ,WPA3

Reception Sensitivity




- 2.4G: 11b: <-85dbm;
11g: <-72dbm;
11n: HT20<-68dbm  HT40: <-65dbm

- 5G: 11a:<-72dbm;
11n: HT20<-68dbm  HT40: <-65dbm
11ac: <-55dbm
11ax VHT80 : <-46dbm
11ax VHT160 : <-43dbm

Software

Basic


- Internet Settings
- Wireless Settings
- Parental Control
- Guest Network Settings
- Smart QoS

Network


- Internet Setup
- LAN Setup
- DDNS
- IPTV
- IPv6

Wireless


 - Wireless Setup
- Guest Network
- Schedule
- Access Control
- Advanced
- Parental Control
- Smart QoS

Device Management


- Routing Table
- Static Route
- IP/MAC Binding

Security


- IP/Port Filtering
- MAC Filtering
- URL Filtering

NAT


- Virtual Server
- DMZ
- VPN Passthrough

Remote network




- L2TP Server
- Shadow socks
- Account Manage

Service


- Remote
- UPnP
- Schedule

Tools




- Change Password
- Time Setup
- System
- Upgrade
- Diagnosis
- Route Tracking
- Log

Operation Mode




- Gateway mode
- Bridge mode
- Repeater mode
- WISP mode

Other Function


- Multi-language automatic adaptation
- Domain Access
- QR Code
- LED Control
- Reboot
- Logout

Others

Package Contents

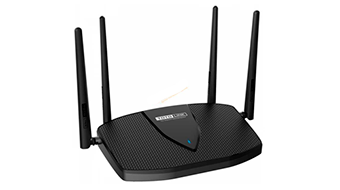

- X5000R Wireless Router *1
- Power Adapter *1
- RJ45 Ethernet Cable *1
- Quick Installation Guide *1

Environment


- Operating Temperature: 0C- 50C
- Storage Temperature: -40C-70C
- Operating Humidity: 10%~90% non-condensing
- Storage Humidity: 5%~90% non-condensing
