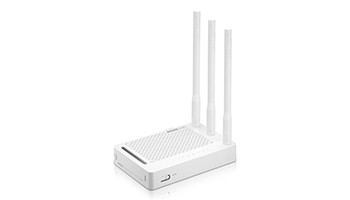

300Mbps Wireless N Broadband Router
5*FE Ports(1*WAN + 4*LAN), 1* WPS/RST button, 3*5dBi fixed antenna, PSU 9V/500MA,
VLAN,Multiple SSID, WiFi schedule, Universal repeater,WPS

- Complies with IEEE 802.11n/g/b standards for 2.4GHz Wireless LAN.
- Up to 300Mbps data rate for Wi-Fi network.
- Advanced MIMO technology enhances the throughput and wireless coverage.
- Supports PPPoE, DHCP and Static IP broadband functions.
- Multi-SSID allows user to create multiple SSIDs according to their needs.
- Provides 64/128-bit WEP, WPA / WPA2 and WPAPSK / WPA2PSK security.
- Connects to secure network easily and fast using WPS.
- Supports IP, MAC, URL filtering and Port Forwarding.
- Universal repeater and WDS function for easy Wi-Fi extension.
- The VPN server can not only protect the privacy of your information, but also simplify network management.

HARDWARE FEATURES

Interface

• 4 *10/100Mbps LAN Ports
• 1 *10/100Mbps WAN Port

Power Supply

• 9V DC/0.8A

Antenna

• 3 *5dBi fixed antennas

Button

• 1 *RST/WPS Button

LED Indicators

• 1 *Power, 1 *CPU, 1 *Wireless, 1 *WAN, 4 *LAN

Dimensions (L x W x H)

• 5.7 x 3.8 x 1.0 in. (144.0 x 95.4.0 x 25.0 mm)

WIRELESS FEATURES

Standards

• IEEE 802.11n, IEEE 802.11g, IEEE 802.11b

RF Frequency

• 2.4~2.4835GHz

Data Rate

• 802.11n: Up to 300Mbps
• 802.11g: Up to 54Mbps (dynamic)
• 802.11b: Up to11Mbps (dynamic)

EIRP

• < 20dBm

Wireless Security

• 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK (TKIP/AES)

Reception Sensitivity

• 270M: -61 dBm@10% PER
• 135M: -65 dBm@10% PER
• 54M: -68 dBm@10% PER
• 11M: -85 dBm@8% PER
• 6M: -88 dBm@10% PER
• 1M: -90 dBm@8% PER

SOFTWARE FEATURES

Network

• Internet Setup: PPPoE/DHCP/Static IP
• LAN/DHCP Setup: DHCP Server/DHCP Static Lease

Wireless

• Multiple BSS
• Multibridge(Repeater): Wireless Bridge/Wireless WAN
• MAC Authentication
• WDS
• WPS
• NAT/Routing
• Port Forwarding
• DMZ/Twin IP
• Port Trigger
• Routing Table

Firewall

• Internet Access Control: IP/MAC Address filtering
• Net Detector
• Remote/Internal access list
• Utility
• VPN Server, DDNS, WOL, Host Scan
• Traffic
• QoS Setup
• Connection Control
• Wired Port Setup

Management

• System Log
• Administrator Setup
• Firmware Upgrade
• System Time
• Configuration backup/restore

Package Contents

• N302R Plus Wireless Router *1
• Power Adapter *1
• Ethernet Cable *1
• Quick Installation Guide *1

Environment

• Operating Temperature: 0~40 Celsius
• Storage Temperature: -40~70 Celsius
• Operating Humidity: 10%~90% non-condensing
• Storage Humidity: 5%~90% non-condensing
