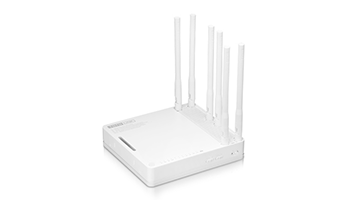

AC1900 Wireless Dual Band  Gigabit  Router

5*GE Ports(1*WAN+4*LAN),1*USB3.0 port, 1* Reset/WPS button, 6 *5dBi detachable antennas, PSU 12V/3.5V,
VPN Server, Smart QoS,Multiple SSID, WiFi schedule, Universal repeater,WPS

- Complies with next generation 11ac Wi-Fi standard.
- 1.3Gbps on 5GHz and 600Mbps on 2.4GHz band for total 1.9Gbps simultaneously.
- 1GHz dual core processor.
- Six detachable high performance antennas.
- Five gigabit Ethernet ports ensure ultrafast data transmission rate.
- Beamforming technology concentrates Wi-Fi signal transmission.
- Provides 64/128-bit WEP, WPA / WPA2 and WPAPSK / WPA2PSK security.
- One USB 3.0 port and one USB2.0 port supports FTP Service, Samba Service,Torrent, URL Service, Media Server and USB Tethering.
- Supports VPN server, Universal Repeater, WDS, Multiple SSIDs, WPS, Smart QoS, Wi-Fi Scheduler

HARDWARE FEATURES
Inteface

• 4 *10/100/1000Mbps LAN Ports
• 1 *10/100/1000Mbps WAN Port
• 1 *USB 3.0 Port
• 1 *USB 2.0 Port

Antenna

• 3 *5dBi detachable antennas(2.4GHz)
• 3 *5dBi detachable antennas(5GHz )

Power Supply

• 12V DC/ 3.5A

Buttons

• 1 *WPS Button
• 1 *RST Button
• 1 *Wi-Fi ON/OFF Button
• 1 *LED ON/OFF Button
• 1 *Power Button

LED Indicators

• 1 *Power
• 1 *CPU
• 1 *5G Wi-Fi
• 1 *2.4G Wi-Fi
• 4 *LAN
• 1 *WAN
• 1 *USB2.0
• 1 *USB3.0

Dimensions

• 7.8 x 7.1 x 1.4 in. ( 197.5 x 180.1 x 36 mm )

WIRELESS FEATURES

Standards

• IEEE 802.11ac
• IEEE 802.11a
• IEEE 802.11n
• IEEE 802.11g
• IEEE 802.11b

RF Frequency

• 2.4GHz & 5GHz

Data Rate

• 5GHz: Up to 1.3Gbps
• 2.4GHz: Up to 600Mbps

EIRP

• 2.4GHz < 20dBm
• 5GHz < 23dBm

Wireless Security

• 64/128-bit WEP,WPA/WPA2,WPA-PSK/WPA2-PSK

Reception Sensitivity (2.4GHz)

• 11b 11M: - 85 dBm
• 11g 54M: - 72 dBm
• 11n HT20 MCS7: - 69 dBm / HT40 MCS7: - 66 dBm

Reception Sensitivity (5GHz)

• 11a 54M: - 70 dBm
• 11ac HT80 MCS7: - 53 dBm
• 11n HT20 MCS7: - 67 dBm / HT40 MCS7: - 64 dBm

SOFTWARE FEATURES

WAN Type

• PPPoE/DHCP/Static IP

Wireless Functions

• Multiple SSID, Wireless Bridge, MAC Authentication, WDS, WPS, Wireless Scheduler
• NAT / Routing     Port Forwarding, DMZ/Twin IP, Port Trigger

Firewall

• Internet Access Control: IP/MAC Address filtering
• Net Detector
• Utility    VPN, DDNS, WOL, Host Scan, IPTV
• Traffic     QoS, Connection Control
• System    System Log, Admin Setup, Firmware Upgrade, System Time, Config Backup and Restore
• USB Storage    FTP Service
• Windows File Sharing(Samba)
• Torrent
• Media Server
• URL Service, USB Tethering

Package Contents    A6004NS Wireless Router *1

• 3 *2.4GHz antennas,
• 3 *5GHz antennas
• Power Adapter *1
• Ethernet Cable *1
• Quick Installation Guide *1

• Operating Temperature: 0℃~40 ℃ (32 ℉~104℉)
• Storage Temperature: -40℃~70 ℃ (-40 ℉~158℉)
• Operating Humidity: 10%~90% non-condensing
• Storage Humidity: 5%~90% non-condensing
