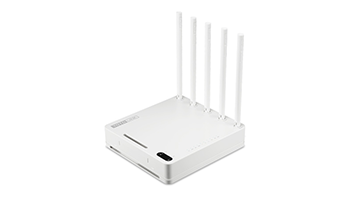

AC1600 Wireless Dual Band  Gigabit NAS Router

5*GE Ports(1*WAN+4*LAN),1*USB3.0 port,  1* Reset/WPS button, 5 *5dBi fixed antennas, PSU 12V/2A
VPN Server, Smart QoS,Multiple SSID, WiFi schedule, Universal repeater,WPS

- Complies with 802.11ac/a/b/g/n standards
- 300Mbps on 2.4GHz and 1.3Gbps on 5GHz band simultaneously.
- Five fixed high gain antennas with advanced MIMO technology.
- Supports PPPoE, DHCP and Static IP broadband functions.
- Multi-SSID allows user to create multiple SSIDs according to their needs.
- Provides 64/128-bit WEP, WPA, WPA2 and WPA-Mixed security.
- Connects to secure network easily and fast using WPS.
- Supports IP, MAC, URL filtering and Port Forwarding.
- Universal repeater and WDS function for easy WiFi extension.
- One USB3.0 port supports FTP Service, Samba Service,Torrent, URL Service, Media Server and USB Tethering.
- The VPN server can not only protect the privacy of your information, but also simplify network management.

HARDWARE FEATURES

Interface

• 4 *10/100/1000Mbps LAN Ports
• 1 *10/100/1000Mbps WAN Port
• 1 *USB3.0 Port

Power Supply

• 12V DC/2A

Button

• 1 *WPS Button
• 1 *RST Button

LED Indicators

• 1 *Power, 1 *CPU, 1 *2.4G Wireless, 1 *5G Wireless, 1 *WAN, 4 *LAN, 1 *USB3.0

Antenna

• 2 *5dBi fixed antennas(2.4GHz )
• 3 *5dBi fixed antennas(5GHz )

Dimensions (L x W x H)

• 6.9 x 6.5 x 1.4 in. ( 174.5 x 165 x 36 mm )

WIRELESS FEATURES

Standards

• IEEE 802.11ac
• IEEE 802.11n
• IEEE 802.11g
• IEEE 802.11b
• IEEE 802.11a

RF Frequency

• 2.4GHz/5GHz

Data Rate

• 2.4GHz: Up to 300Mbps
• 5GHz: Up to 1.3Gbps

Wireless Security

• 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK (TKIP/AES)

EIRP

• 2.4GHz < 20dBm
• 5GHz < 23dBm

Wireless Security

• 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK (TKIP/AES)

Reception Sensitivity - 2.4G

• 11b: <-79dbm
• 11g: <-68dbm
• 11n: HT20

Reception Sensitivity - 5G

• 11a:<-68dbm
• 11ac: HT20

SOFTWARE FEATURES

WAN Type

• PPPoE/DHCP/Static IP

Wireless Functions

• Multiple SSID, Wireless Bridge, MAC Authentication,
• WDS, WPS, Wireless Scheduler
• NAT / Routing
• Port Forwarding, DMZ/Twin IP, Port Trigger

Firewall

• Internet Access Control: IP/MAC Address filtering
• Net Detector
• Utility
• VPN, DDNS, WOL, Host Scan, IPTV
• Traffic
• QoS, Connection Control
• System
• System Log, Admin Setup, Firmware Upgrade, System Time,
• Config Backup and Restore
• USB Storage
• FTP Service
• Windows File Sharing(Samba)
• Torrent
• Media Server
• URL Service
• USB Tethering

Package Contents

• A5004NS Wireless Router *1
• Power Adapter *1
• Ethernet Cable *1
• Quick Install Guide *1

• Operating Temperature: 0℃~40 ℃ (32 ℉~104℉)
• Storage Temperature: -40℃~70 ℃ (-40 ℉~158℉)
• Operating Humidity: 10%~90% non-condensing
• Storage Humidity: 5%~90% non-condensing
