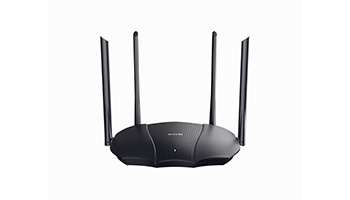

Tenda RX9PRO AX3000 Dual-band Gigabit Wi-Fi 6 Router



Premium Wi-Fi 6 Performance for

Your Smart Home Members



AX3000 for Ultra-Fast Transmission Speed

RX9 Pro is a Dual-band Wi-Fi 6 router that provides 160MHz bandwidth and 1024-QAM for ultra fast wireless connection. With a total networking speed of 2976Mbps — 574Mbps on the 2.4GHz band and 2402Mbps on the 5GHz band.



Minimize Lag for a Better,Smart Products Experience

With the innovative combination of OFDMA + MU-MIMO, 802.11ax technology provides greater network capacity and efficiency in congested environments than Wi-Fi 5.

OFDMA divides each channel into small sub-channels, allowing signals from multiple appliances to be bundled together and transmitted simultaneously, reducing latency for a smoother Wi-Fi experience.



Hardware



Standard&Protocol

IEEE802.3, IEEE802.3u,IEEE802.3ab



Interfaces

1*10/100/1000Mbps WAN port

 3*10/100/1000Mbps LAN ports



Antenna

4*6dBi external antennas



Button

1* WPS/Reset button



Power

Input：AC 100-240V~50/60Hz 0.6A

Output：DC 12V⎓1.5A



Dimension

272.44x162.85x43.71mm



LED Indicator

SYS*1



Wireless



Wireless Standard

IEEE 802.11ac/a/n/ax 5GHz

IEEE 802.11b/g/n/ax 2.4GHz



Data Rate

5GHz: Up to 2402Mbps

2.4GHz: Up to 574Mbps



Frequency

Simultaneous dual band 2.4



Transmission Power

CE:

<20dBm(2.4G)

<23dBm(5G)



Basic Features



SSID Broadcast: Enable/Disable



Transmission Power: high, medium, low



Beamforming

MU-MIMO



Wireless Security

WPA-PSK,WPA2-PSK, WPA/WPA2-PSK

WPA3-SAE/WPA2-PSK



Wireless Security: Enable/Disable

WPS(WiFi Protected Set-up) fast encryption
