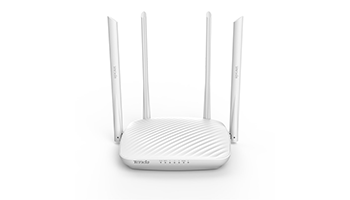

TENDA F9 600M Whole-Home Coverage Wi-Fi Router



Tenda F9 600Mbps High Speed and whole-home coverage Wi-Fi router,Compared to 450Mbps and 300Mbps products, it’s transmission is more efficient and smooth,It support Smartphone APP remote management, you can manage your device at anytime and anywhere. 4*6dBi High-gain omnidirectional antennas, incredible Wi-Fi coverage and reliability



600Mbps High Speed whole-home coverage Wi-Fi router



Compared to 450Mbps and 300Mbps products,it’s transmission is more efficient and smooth.Support more devices connection at the same time



4*6dBi High-Gain Omnidirectional Antennas, Incredible Wi-Fi Coverage and Reliability.



Easy Setup, Easy Life



When you forget the broadband account and password, you can use the Broadband Account & Password Migration Function to copy the old router's broadband account and password directly to the F9



Tenda F9 Support Smartphone APP Remote Management, You Can Manage Your Device at Anytime and Anywhere.



◎ You will be reminded when unidentified devices connect to the network.

◎ You can add unknown user to blacklist through the phone APP with one touch.



Standard&Protocol

IEEE802.11b,IEEE 802.11g, IEEE 802.11n



Interface

1*10/100Mbps WAN port

3*10/100Mbps LAN ports



Button

1*WPS/RST,1*WIFI



Indicator

SYS 、WiFi、 1、 2、 3、 WAN 、 WPS



Chipset

Realtek



Flash

2MB



Memory

16MB



Output Power

9V1A



Plug Type

Chinese-standard

American-standard

British-standard

European-standard

Power Consumption

No-load 1.66W

Full-load 1.98W



Dimension

171.3mm*171.3mm*36.4mm



Temperature

Operating Temperature:0ºC~40ºC

Storage Temperature:-40~70℃



Humidity

Operating Humidity:10%~90%, non-condensing

Storage Humidity:5%~90%, non-condensing



Modulation

802.11b: DSSS ( DBPSK / DQPSK / CCK )

802.11g: OFDM ( BPSK / QPSK / 16QAM / 64QAM )

802.11n: OFDM ( BPSK / QPSK / 16QAM / 64QAM )

802.11n: OFDM ( BPSK / QPSK / 16QAM / 64QAM / 256QAM )



Data Rate

802.11b : 11 Mbps

802.11g : 54 Mbps

802.11n : 450Mbps

802.11n (256QAM): 600Mbps



Frequency

2.4~2.4835 GHz



Power

802.11b-1M: 21.5 dBm ± 1.5 dBm

802.11g-54M: 17.5 dBm ± 1.5 dBm

802.11n-MCS7: 17 dBm ± 1.5 dBm

802.11n-VHT: 15 dBm ± 1.5 dBm



Reception Sensitivity

802.11b-1M: -95 dBm /802.11g-54M: -74 dBm / 802.11n-MCS7: -72 dBm/ 802.11n-VHT: -62 dBm

150Mbps：-70 Bm@10% PER

108Mbps：-73 dBm@10% PER

54Mbps：-74 dBm@10% PER

11Mbps：-86 dBm@8% PER

6Mbps：-90 dBm@10% PER

1Mbps：-95 dBm@8% PER



Antenna

4*6dBi external non-detachable



Package Content

Refer to Quick Installation Guide and User Manual



Standard Version

RFC768 UDP

RFC791 IP

RFC792 ICMP

RFC793 TCP

Channel Bandwidth: 20MHz、20/40MHz



Working Mode

Router、WISP、Universal Reader、AP



Wireless Security

WPA-PSK/WPA2-PSK、WPA、WPA2



DHCP Server

Support



System Tool

Internet time、Backup/Recovery、Upgrade

Reset to Factory Default

Login Password

System Log

Reboot



System Requirements

windows 2000

IE 5.0 or Firefox1.0 or higher

Network Adapter
